380V 50HZ Central Drive Sludge Scraper Wastewater Treatment For Aquaculture

Ask Lasest Price
Brand Name :	longdai
Model Number :	ZBG-18
Certification :	ISO9001 CE
Price :	Negotiatable
Payment Terms :	L/C, T/T
Supply Ability :	500 sets per Years
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

380V 50HZ Central Drive Sludge Scraper Wastewater Treatment For Aquaculture

Sewage Treatment Plant Central Drive Sludge Scraper for Scraping and Skimming Mud in The Circular Sedimentation Tank

sludge scraper has Full bridge, Half bridge.
Full/half bridge sludge scraper is suitable for the collection and discharge of sludge in circular radial sedimentation tank. It is mainly composed of working bridge, center rotating support, scraper scraper, diversion cylinder, driving mechanism, slag retaining and slag discharging device, etc., which can meet the requirements of DN5-DN50 kinds of specifications and different water quantity of sedimentation tank.
The driving-type sludge scraper is suitable for collecting and discharging sludge from rectangular flat-flow sedimentation tank. It is mainly composed of working bridge, transmission device, scraper, sludge lifting pump and so on.

Working Principle

Sludge scraper, sewage by central piers by diverting tube diffusion, mixture of massive particles by precipitation in the bottom sludge layer, the proportion of light floating in the liquid level, driving gear drives the work mud scraper bridge and set the sludge from pool week step by step toward the center of silt orifice discharge pool, sludge scraper along the guide tube will be floating scum on the liquid surface into the pool within weeks of discharge hopper, discharge outside the pool.

Parameter

Model Number / Parameters		ZBG-16	ZBG-20	ZBG-25	ZBG-30	ZBG-35	ZBG-40	ZBG-45	ZBG-50	ZBG-55
Pool diameter Φ(m)		16	20	25	30	35	40	45	50	55
Deep pool depth H(m)		3.5～4.5(According to the user's requirements)
Pool side water depth H2(m)		3.0～4.0(According to the user's requirements)
Around the line speed v(m／min)		2.0~3.0
Walking wheel dimensions (mm)		Φ400x120					Φ120x450
power of motor N(KW)		0.37			0.55				0.75
installation size (mm)	Φ1	1100	1100	1200	1200	1500	1500	1800	1800	1800
	Φ2	2500	2500	2500	3500	4000	4500	5000	5500	6000
	Φ3	2600	3000	3800	4500	4500	5000	5000	6000	6000
	Φ4	2100	2300	3500	4000	4000	4000	4500	4500	4500
	H2	500	500	600	760	760	760	760	760	760
	B	According to the user's requirements
	H3	According to the user's requirements
	L	According to the user's requirements
Around the wheel pressure P1(KN)		9.0	11.5	15	19	22	25	28	30	32
Vertical load of the central platform P2(KN)		17	23	30	37	82	100	112	122	175
Center load of center load P3(KN)		9.5	13	17	22	28	28	30	32	40

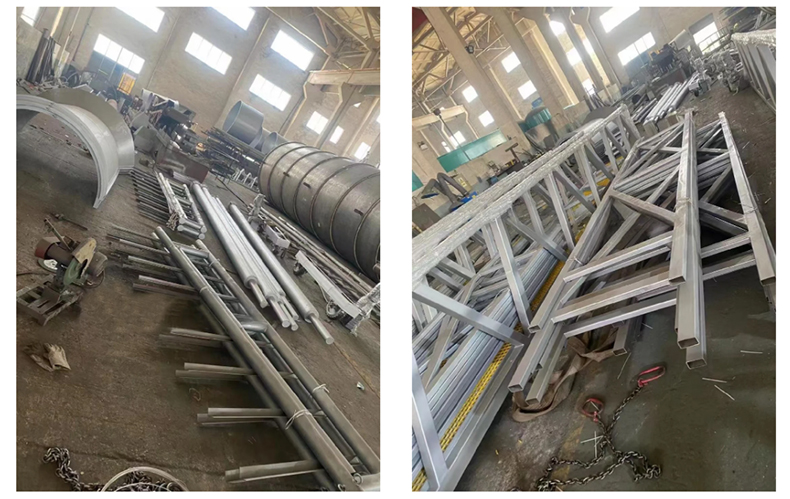

Real Picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."

The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.

The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.

The company has passed ISO9001-2008 international standard quality
system certification.

We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.

FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept? A: T/T, L/C, PAYPAL, Cash,
D/P, D/A, WESTERN UNIION, MONEYGRAM
