Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer

Jiangsu Longdai Environmental Protection Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers

    Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers
    • Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers
    • Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers
    • Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers
    • Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers
    • Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers
    • Buy cheap Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer from wholesalers

    Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer

    Ask Lasest Price
    Brand Name : longdai
    Model Number : JY-2000
    Certification : ISO 9001:2015
    Price : to be negotiatable
    Payment Terms : L/C, T/T
    Supply Ability : 10000sets
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Energy Saving 2000L/H PE Coagulant Dosing System For Circulating Cooling Water Stabilizer

    2000L/H PE coagulant dosing device coagulant aid acid-base salt dosing system for circulating cooling water stabilizer dosing


    Dosing equipment is a kind of water treatment equipment specially used for adding water stabilizer, coagulant, disinfectant and other performance. The equipment is characterized by compact structure, convenient installation and stable performance. It also has low energy consumption, corrosion resistance and low noise.


    Working Principle


    The quantitative agent is put into the mixing solution tank for mixing and dissolution through the device as required. After dissolution, it is sent to the dosing point through the metering pump. The dosage can be adjusted freely to meet the requirements of different dosage sites.


    Product Features


    1. Highly integrated integrated equipment;
    2. Fully automatic control function;
    3. The equipment is small in size, simple in operation and convenient in installation. Only water and power are needed on site;
    4. The liquid medicine mixer is made of stainless steel, and the dissolution effect is 100%;
    5. Safe and reliable operation and stable performance;
    6. It has good corrosion resistance and is made of engineering plastics and stainless steel in contact with the medium;
    7. It is not only suitable for powder, fiber, materials that are difficult to dissolve, easy to agglomerate, and materials with high feeding requirements, but also suitable for the configuration and feeding of liquid materials;
    8. High efficiency stainless steel special deceleration mixer to prevent macromolecular chain from breaking;


    Applicaton


    1. The dosing system is used for dissolving, mixing and dosing of coagulant, coagulant aid and disinfectant in water engineering. 2. Preparation and throwing of various acid and alkali solutions 3. Regulation, configuration and dosing of demineralized water treatment regeneration liquid. 4. Configuration and dosing of circulating cooling water quality stabilizer.


    Parameters


    TypeQJY-500QJY-1000QJY-1500QJY-2000QJY-3000
    production abilityQ(L/h)5001000150020003000
    Size900x1500x16501000 x 1625 x17501000 x 2440x18001220 x 2440 x180C1220x3200x2000
    Powder Dosing PowerNi(KW)0.180.180.180.180.18
    blenderBlade diameterG(mm)250250250250250
    Vertical spindle speed(i/min)9696969696
    PowerN2(KW)0.55 x 20.55x20.55 x 20.55x20.55x2
    Dosing screw pumpFlow Q2(mV h)111.5~2.01.5-2.03.0~ 5.0
    Lifth(m)2020202020
    Power N3(KW)1.11.11.51.52.2
    Water Inlet Dia(mm)2020252532
    Water outlet Dia(mm)2020252532
    InstallationB9001000100012201220
    L15001625244024403200
    H16501750180018002000
    Hi8001050105010501350

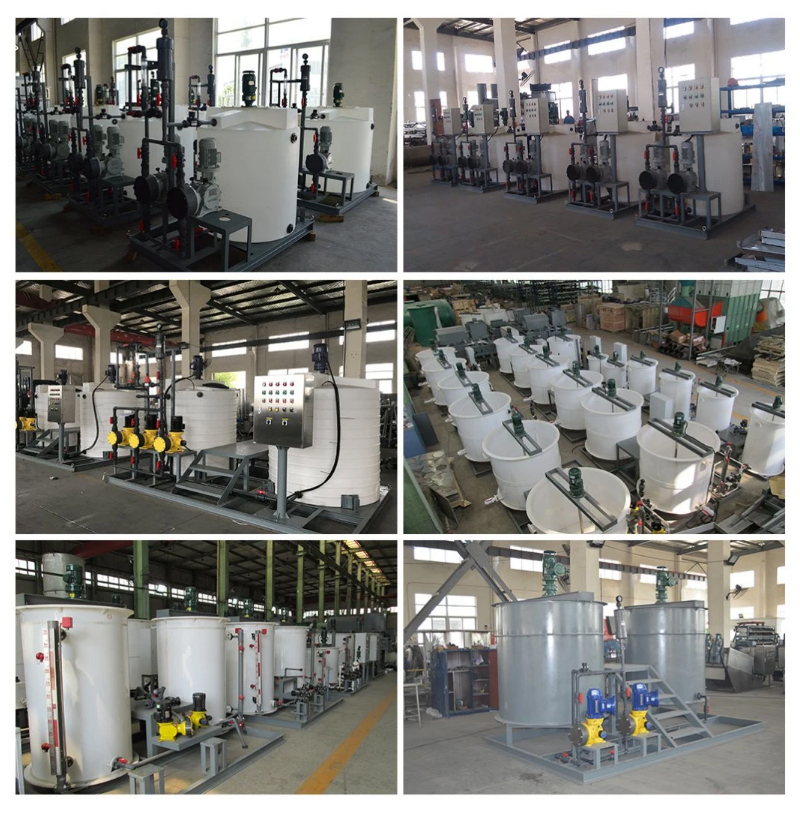

    Real Picture


    Company Profile


    Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment
    manufacturer with 11 years of experience. It has provided a large number of sophisticated
    environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
    Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment,
    Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
    Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water
    separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
    The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
    The processing team controls the manufacturing details of each equipment, and manufactures
    the most sophisticated and reliable equipment for customers.
    The company has passed ISO9001-2008 international standard quality system certification.
    We look forward to contacting you, please give us a chance. I hope we can trust each other for
    mutual benefit and win-win results.


    FAQs


    Q: How Can I Find The Suitable Model?
    A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can
    Assist You In Model Selection.

    Q: Where Is Your Factory Located?
    A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering
    Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

    Q: Do You Provide OEM Service?
    A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

    Q: How About The Production Capacity Of Your Company?
    A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.

    Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
    A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export
    Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.

    Q: Do You Offer After-Sales Service?
    A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
