Fully automatic integrated petrochemical sludge dewatering machine
304 stainless steel industrial sludge treatment equip
The main body of the laminated screw type dehydrator is a filtering
device formed by a fixed ring and a movable ring which are
overlapped with each other, and the spiral shaft penetrates through
them. The front section is the concentration section, and the rear
section is the dehydration section. The filter gap formed between
the fixed ring and the movable ring and the pitch of the screw
shaft gradually decrease from the concentration part to the
dehydration part. The rotation of the screw shaft drives the sludge
to be transported from the thickening section to the dewatering
section, and at the same time, it also continuously drives the
traveling ring to clean the filter joint to prevent clogging.
Working Principle
1. Concentration: When the screw push shaft rotates, the multiple
fixed and movable laminations located on the periphery of the push
shaft move relatively. Under the action of gravity, the water is
filtered out from the relatively moving lamination gap to achieve
rapid concentration. 2. Dewatering: the concentrated sludge moves
forward with the rotation of the screw shaft; along the outlet
direction of the mud cake, the pitch of the screw shaft gradually
decreases, the gap between the rings also gradually decreases, and
the volume of the spiral cavity gradually decreases. Continuously
shrinking; under the action of the back pressure plate at the
outlet, the internal pressure gradually increases, and under the
continuous operation of the screw shaft, the water in the sludge is
squeezed and discharged, and the solid content of the filter cake
is continuously increased, and finally the sludge is realized.
continuous dehydration. 3. Self-cleaning: The rotation of the screw
shaft drives the moving ring to rotate continuously, and the
equipment relies on the movement between the fixed ring and the
moving ring to realize the continuous self-cleaning process, thus
cleverly avoiding the common clogging problem of traditional
dehydrators.
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 |
Handling capacity (m3／h) | Ind concentration S．S．0.2～0.5％) | 0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
Ind concentration (S．S．0.5～2.0％) | 0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 |
Ind concentration (S．S．2.0～5.0％) | 0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 |
Exdry amount (kg／h) | Ind concentration (S．S．0.2～0.5％) | 0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
Ind concentration (S．S．0.5～2.0％) | 0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 |
Ind concentration (S．S．2.0～5.0％) | 0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 |
| Power power(KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 |
contour size of the unit(s) (ww) | L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 |

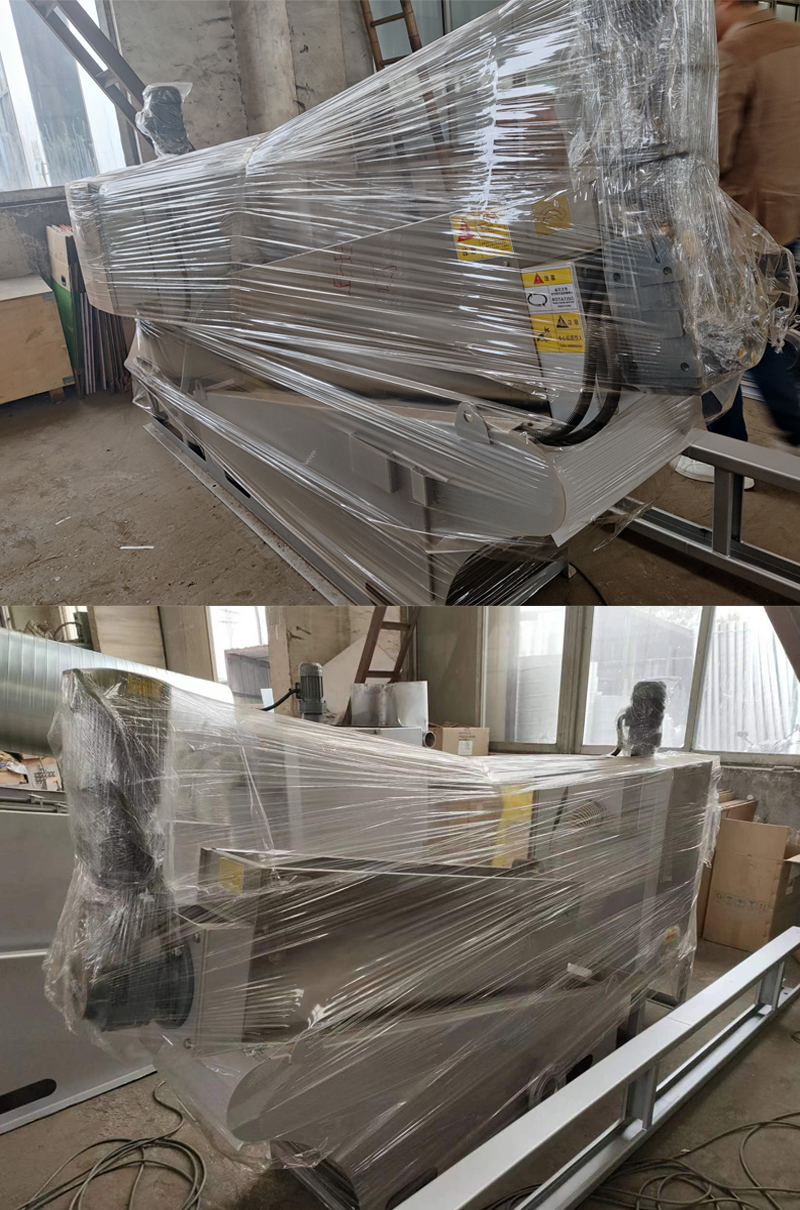

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an
environmental protection equipment manufacturer with 11 years of
experience. It has provided a large number of sophisticated
environmental protection equipment at home and abroad, established
three branches in China, and cooperated with many universities to
build Longdai R&D center. There are 4 middle doctors, 10
masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."
The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.
The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.
The company has passed ISO9001-2008 international standard quality
system certification.
We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.
FAQs
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
