High quality and efficient screw press sludge dewatering machine
for the petroleum and chemical industries
The Longdai sludge dewatering machine belongs to the spiral filter
press, which is non clogging and can reduce the sedimentation tank
and sludge concentration tank, saving the construction cost of the
sewage plant. The Longdai spiral sludge dewatering machine adopts
screws and moving rings as non clogging structures for
self-cleaning, and is automatically controlled by PLC. This is a
new technology that can replace traditional filter presses, such as
belt filter presses and frame filter presses. The screw speed is
very low, so compared to centrifuges, it has low power and water
consumption, making it a cutting-edge sludge dewatering machine.
Working Principles
The treated sludge flows into the filtration zone from the
flocculation tank and is pushed forward to the discharge end. As
the gap between the threads of the shaft narrows, the pressure on
the sludge increases. Then, the water is separated from the sludge
and flows out from the gap between the movable and fixed rings. The
movement of the moving ring will clean the gap between the moving
ring and the fixed ring to prevent machine blockage.
Application
The sludge dewatering spiral filter press can be widely used in
various sewage treatment systems, such as municipal, petrochemical,
chemical fiber, papermaking, pharmaceutical, leather and other
industrial water treatment systems.
It can also be used for dairy manure treatment, palm oil sludge,
septic tank sludge, etc. The actual operation shows that the
dewatering screw press can bring considerable economic and social
benefits to users.
Advantage
1. Closed to minimize odor and noise, very low usage of washing
water (1/8 compared to belt presses);
2. Very low power consumption (1/20 compared to centrifuges);
3. The cake has a high solid content;
4. Minimum operator requirements;
5. Easy to operate and maintain;
6. Automatic startup, operation, and shutdown;
7. Optional touch screen operation;
8. Sludge flow and filter cake monitoring system
9. There are many other options available, such as dairy products,
palm oil, etc.
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 |
Handling capacity (m3／h) | Ind concentration S．S．0.2～0.5％) | 0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
Ind concentration (S．S．0.5～2.0％) | 0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 |
Ind concentration (S．S．2.0～5.0％) | 0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 |
Exdry amount (kg／h) | Ind concentration (S．S．0.2～0.5％) | 0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
Ind concentration (S．S．0.5～2.0％) | 0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 |
Ind concentration (S．S．2.0～5.0％) | 0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 |
| Power (KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 |
contour size of the unit(s) (ww) | L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 |

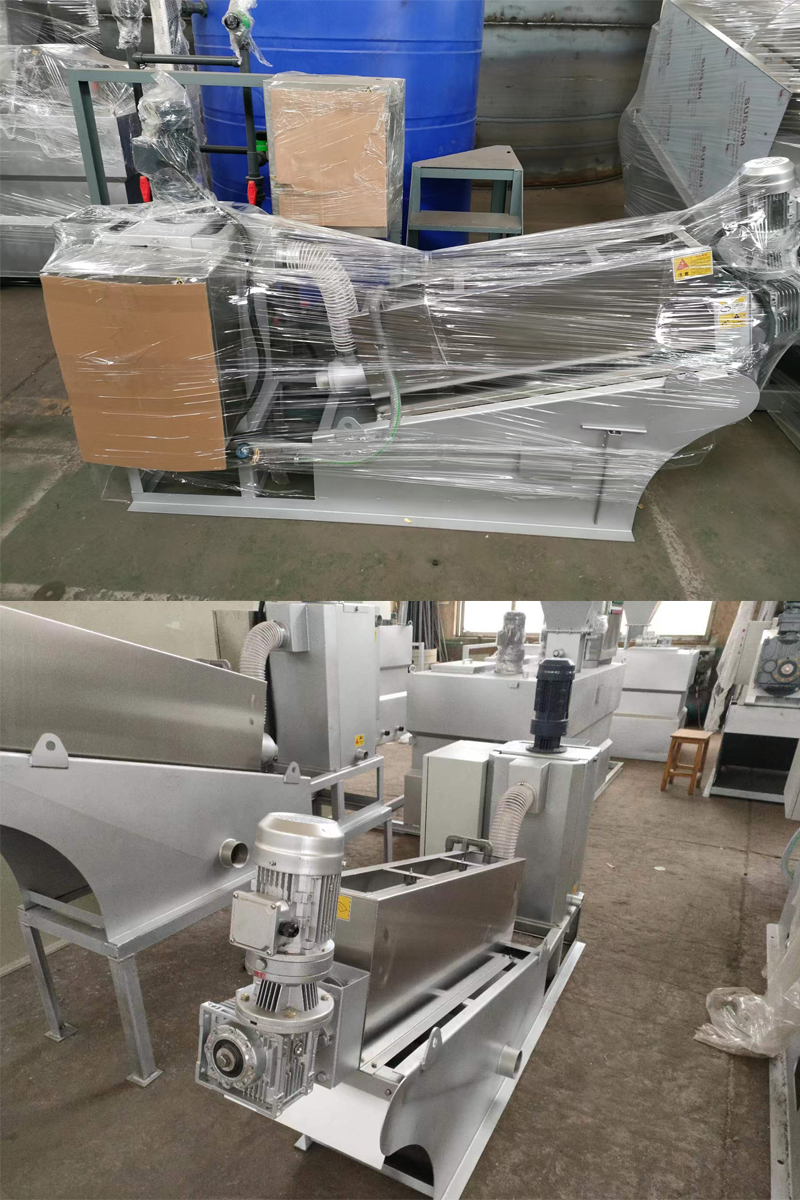

Real picture
