Siphon Sand Sucker Equipment High Efficiency Desanding Equipment
Simple Structure Eddy Immersible Pump
product description
The bridge sand suction machine is mainly used in the advection
aeration grit tank of the sewage treatment plant (station) to
remove the grit at the bottom of the grit tank.
Working principle and structure

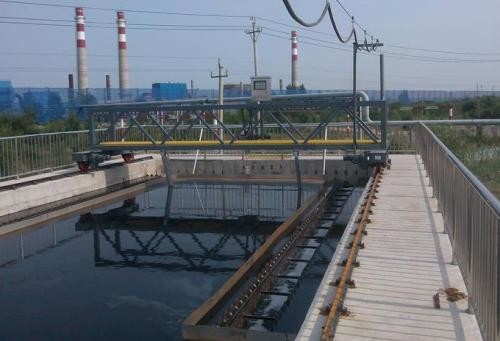

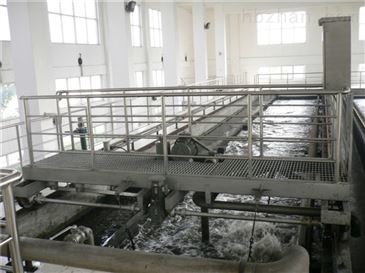

The sand suction machine moves back and forth along the rails on
the surface of the grit settling tank. The sand suction pump
(submersible sewage pump) on the machine sucks out the sand-water
mixture at the bottom of the tank and raises it to a certain
height, and enters the gravel separator for separation. A skimmer
board can be set to scrape the scum on the water surface into the
slag trough at the end of the pool.
| Model Number / Parameters | QXS-3 | QXS-4 | QXS-6 | QXS-8 | QXS-10 | QXS-12 |
| Pool width B(m) | 3 | 4 | 6 | 8 | 10 | 12 |
| Gauge Lk(m) | B+0.4 |
| Pool depth H(m) | 3.0～7.0 According to the user's requirements |
| Pool length L(m) | According to the user's requirements |
| wheel-base L1(mm) | 1500 | 1800 | 2000 |
| Running speed v(m／min) | 1.5~2.0 |
| Walking motor power N(KW) | 0.37 | 2x0.25 | 2x0.37 |
| Submersible sewage pump | handling capacity Q (m3／h) | 20 | 30 |
| Head of delivery h(m) | 2.0 |
| Capacity N2(KW) | 0.75 | 1.10 |
| Number of submersible sewage pumps | 1 | 2 |
| Steel wheel diameter d(mm) | 250 |
| Rail specification(kg／m) | 15(GB/T11246-1989) |
| Wheel-pressure P(KN) | 10 | 14 |
Main Features
1. Reciprocating sand suction and slag skimming, high efficiency
and simple structure.
2. The vortex low-lift submersible pump is used to suck sand, no
water diversion operation is required, no blockage, wear-resistant,
safe and reliable.
3. One-way skimming makes the pool surface cleaner.
4. After the grit is aerated and circulated, the organic matter on
the sand has been washed, and the discharged sand has no odor.
5. The equipment is easy to operate, and the operation of the
equipment can be directly controlled locally/remotely.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
1. Waterproof packing with the international export standard by
20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and
Power Cabinet will be packed in Wooden Case or Iron Box. Other
Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will
use Waterproof cloth to pack all of them. The motor, gear box or
other easily damaged parts, we will put them into box. We have a
professional shipping department, they will try their best to save
your container quantity.
