China High Efficiency PD Screw Belt Conveyor Cleaner flexible easy
to operate alloy metel material
To Our Customers:
We are not professional in the picture beautifying, but we are
engaged in manufacturing almost all kinds of wastewater treatment
equipments. Any question, please feel free to contact us. Thanks.
Application
Belt conveyor is the abbreviation of belt conveyor. The belt
conveyor uses the continuous or intermittent movement of the
conveyor belt to transport various items of different light and
weight. It can transport various bulk materials, as well as various
cartons, packaging bags and other single items with different
weights. Large cargo, wide range of uses.
| Model | PD-500 | PD-650 | PD-800 | PD-1000 |
| 500 | 650 | 800 | 1000 |
| Transmission bandwidth B(mm) |
Delivery value Q (m3/h) |
Installation angle α(°) | 0.0 | 25.0 | 32.0 | 50.0 | 75.0 |
| 10.0 | 22.5 | 28.8 | 45.0 | 67.5 |
| 15.0 | 18.75 | 24.0 | 37.5 | 56.25 |
| 20.0 | 15.0 | 19.2 | 30.0 | 45.0 |
| Tape speed V(m／s) | 0.6~1.0 |
| Power of motor N(KW) | 0.75～22.0(Depending on the L, the) |
| Electric drum diameter D(mm) | 220,240,315,400,500(Depending on the L, the) |
| Installation size (mm) | B1 | B+250 |
| L | According to the user's requirements |
| 工 | According to the user's requirements |
| H1 | H+80+(D/2) |
Main Features
1. The equipment is reliable in operation, with large conveying
capacity, long conveying distance, multi-point loading materials
and continuous conveying, etc.
2. The driving device adopts oil-cooled electric drum, with
protection grade IP55, compact structure, small floor space and
easy maintenance.
3. The equipment adopts spiral tensioning device to ensure the
safe, reliable and effective operation of the conveyor belt.
4. Conveyor belt material is butyl rubber, and adopts vulcanization
connection method, which is convenient for cleaning, corrosion
resistance and long life.
5. There are slag baffles on both sides of the upper trough-shaped
supporting rod, so that the slag sewage does not flow and overflow,
and the environment is clean.
6. Easy operation, no blockage, convenient maintenance, can be
arranged horizontally, and can be conveyed at an inclined angle. It
is an ideal equipment for conveying grille slag.

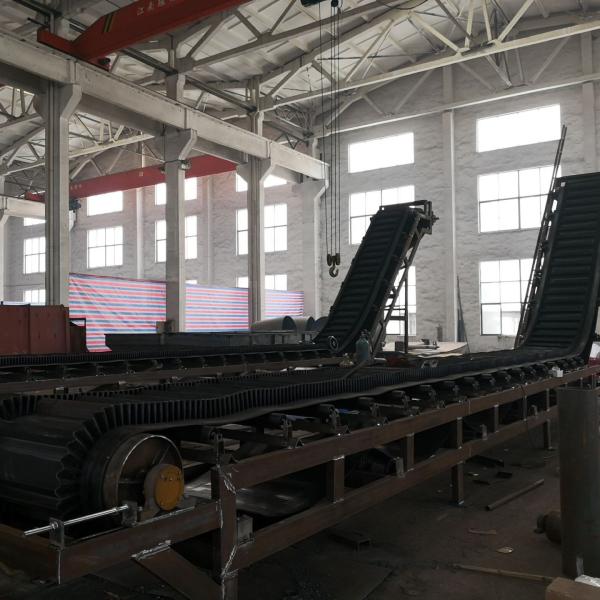

Structure and Working Principle
The equipment adopts a continuous trough belt type. The material
falls on the conveyor belt from the bar or the discharge port of
the dewatering machine. Driven by the electric drum, the material
moves from one end to the other, and the end is connected with the
trash can to deal with.
Packing and Delivery
1. Waterproof packing with the international export standard by
20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and
Power Cabinet will be packed in Wooden Case or Iron Box. Other
Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will
use Waterproof cloth to pack all of them. The motor, gear box or
other easily damaged parts, we will put them into box. We have a
professional shipping department, they will try their best to save
your container quantity.
FAQ:
Q: How Could We Trust You And Your Company? Is This Your First Time
Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience.
We Cooperate Over 800 Customers in China And Overseas. We Export
Nearly 60 Countries All Over The World. And We Have More Than
60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field
Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As
Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free
Of Charge.
