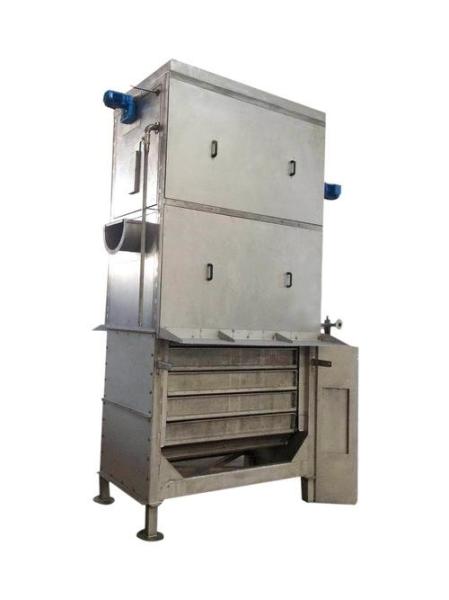

China Advanced Inner Flow Water Treatment High Efficiency
Mechanical Bar Screen
To Our Customers:
We engage in manufacturing lots of wastewater treatment equipments.
Any question, please feel free to contact us. Thanks.
Product Details
| Width&Depth | Customize |
| Power | 0.55-3.0 kw |
| Motor | SEW or NISSEI |
| Electrical component | Schneider/Omron/Siemens |
| Warranty | 1 year |
| After-sale service | engineers available |
| Product Keywords | rakes screens,bar screentical bar scr |
Application
It is a new type of fine bar cleaning equipment that uses
continuous interception and removal of solid debris in the fluid,
which can achieve an excellent cleaning effect. Such as flat
solids, weeds, melon husks, etc., especially the hair fiber dirt
that is difficult to intercept by traditional fine bars, can
greatly reduce the load of subsequent processing steps.
Structure and Working Principle
Sewage enters the middle of one side of the vertical orifice fine
bar cleaning machine, and is discharged from the inside and outside
through the opening grids on both sides. The slag intercepted in
the interior is lifted to the upper slag discharge area with the
rotation of the opening grid. The grid slag is washed by the
washing system into the internal slag collecting tank, and then
sent to the next equipment through the conveying equipment, and the
screen is also washed clean and enters the next working cycle.
The inner flow screen grid is mainly composed of a main frame, a
rotating screen and a chain, a drive unit, a slag collecting tank,
a backwash system and a control system
Main Features
1.The screen plate has a large water-passing area and a high
garbage retention rate.
2. Vertical installation, effectively saving space.
3. Stable operation; the lifting of the stencil is not easy to
overload.
4. Eliminate the problems of fiber and hair entanglement.
5. The unloading aid system composed of rotating brush and flushing
mechanism is adopted, which makes garbage removal cleaner.
6. The filter screen has low friction, wear resistance, not easy to
block, and easy to clean.
7. Fully automatic control can be realized through time and liquid
level difference.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
1. Waterproof packing with the international export standard by
20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and
Power Cabinet will be packed in Wooden Case or Iron Box. Other
Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will
use Waterproof cloth to pack all of them. The motor, gear box or
other easily damaged parts, we will put them into box. We have a
professional shipping department, they will try their best to save
your container quantity.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or
directly contact us by the clicking the “contact” icon. We Can
Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental
protection equipment ,professional for Sludge screw press
dewatering Machine ,Which Is Very Close To Shanghai With Only Less
Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different
Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000
Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time
Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience.
We Cooperate Over 800 Customers in China And Overseas. We Export
Nearly 60 Countries All Over The World. And We Have More Than
60+Patents, CE,ISO 9001,SGS Certificates.
