Medical Waste Incinerator Used In The Harmless Treatment Combustion
Chamber Electric Control Cabinet
Brief Introduction
Our products include mechanical bar screen, air flotation device,
dosing device, mud scraper, cooling tower, decanter, chemical
degreasing device, hydraulic screen, sand water separator, filter,
conveyor, thickener , Biological filter, softened water, buried
sewage treatment equipment, etc.
Structure

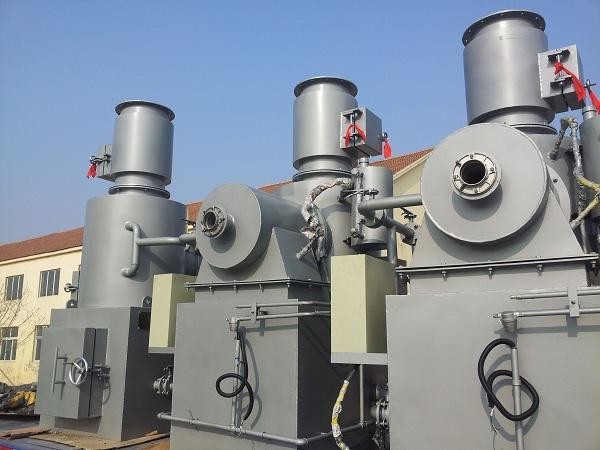

Incinerator body primary combustion chamber, secondary combustion
chamber, cyclone dust collector, chimney, flue, piping system, high
pressure blower, auxiliary pressure induced draft fan, primary
combustion machine, secondary combustion machine, electric control
cabinet, temperature indicator Device, detection device, etc.
Parameters
| Type | Main Size(mm) | Capacity(kg/ batch) | Inside volume(m3) | power consumption(kw/h) | fuel consumption(L/h) | Equioment Weight(t) |
| ZTFS-25 | 1000X900X1700 | 25 | 2.5 | 2 | 3 | 1. 15 |
| ZTFS-20-40 | 1200X1300X1800 | 20-40 | 3.0 | 2-4 | 3-8 | 2. 2-5.5 |
| ZTFS-20-60 | 1700X1500X2100 | 20-60 | 5.0 | 2-5 | 3-10 | 4. 5-7. 8 |
| ZTFS-50-120 | 2200X2000X2500 | 50-120 | 10.0 | 3-12 | 4-15 | 5.0-11. 5 |
| ZTFS-100-300 | 3000X3500X2900 | 100-300 | 13.0 | 10-30 | 10-40 | 15-25 |
| ZTFS-400-500 | 3000X3700X3200 | 400-500 | 17.0 | 40-50 | 50-60 | 30-45 |
Application
1. Using gasification incineration technology, it is suitable for
incineration of medical equipment such as syringes, drip
containers, various paper waste materials, bandages, absorbent
cotton, various medical wastes, and various wastes removed from
hospitals and medical institutions.
2. The gasification incineration method is adopted, and the garbage
generated every day can be incinerated once.
3. Use gasification incineration, mixed incineration, burn-out
treatment and other technologies to make exhaust smoke and smoke
dust content lower than national emission standards.
4. Fully enclosed operation is adopted, which is suitable for
treating infectious medical wastes and avoiding secondary
pollution.
5. Small size and small footprint.
6. This series of incinerators are divided into two types: fuel oil
and gas, and users can use different types according to their
needs.
Combustion process and brief description:
The waste is manually put into the primary combustion chamber of
the furnace body, and the automatic temperature control starts the
primary combustion. According to the principle of combustion three
T (temperature, time, vortex), it is fully oxidized, pyrolyzed and
burned in the furnace body combustion chamber. The flue gas
produced by incineration enters the second combustion chamber, and
the unburned harmful substances in the flue gas are further
destroyed in the second combustion chamber. In order to completely
decompose the unburned embers and meet the emission requirements,
the second combustion chamber is equipped with a burner to assist
combustion, and is equipped with a unique secondary air supply
device to ensure that the flue gas is in full contact with oxygen
at high temperatures, and at the same time to ensure that the flue
gas is in the second combustion chamber. The residence time of the
combustion chamber is adjusted according to the oxygen content of
the flue gas at the outlet of the second combustion chamber. The
temperature in the second combustion chamber is controlled and the
larger particles are removed by the dust collector, so that the
incineration efficiency and destruction removal rate can reach more
than 99%, so that it can achieve the effect of no odor, no odor and
smoke, and reach the national emission standard. It enters the
chimney and is discharged into the atmosphere, and the ashes
produced after combustion are manually taken out, screened,
transferred and buried.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30
Years' Professional Experience As a Waste Water Treatment Equipment
Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge
Dewatering Press Sludge Screw Press, Dewatering Sludge Machine
Screw Press ,Sewage Treatment Equipment ,Sludge Treatment
Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering
Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary
Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation
System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing
Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation
Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or
directly contact us by the clicking the “contact” icon. We Can
Assist You In Model Selection.
