Rotary Precision Filter Wastewater Treatment Tank Specific Surface Area Filtration Equipment​

Introduction

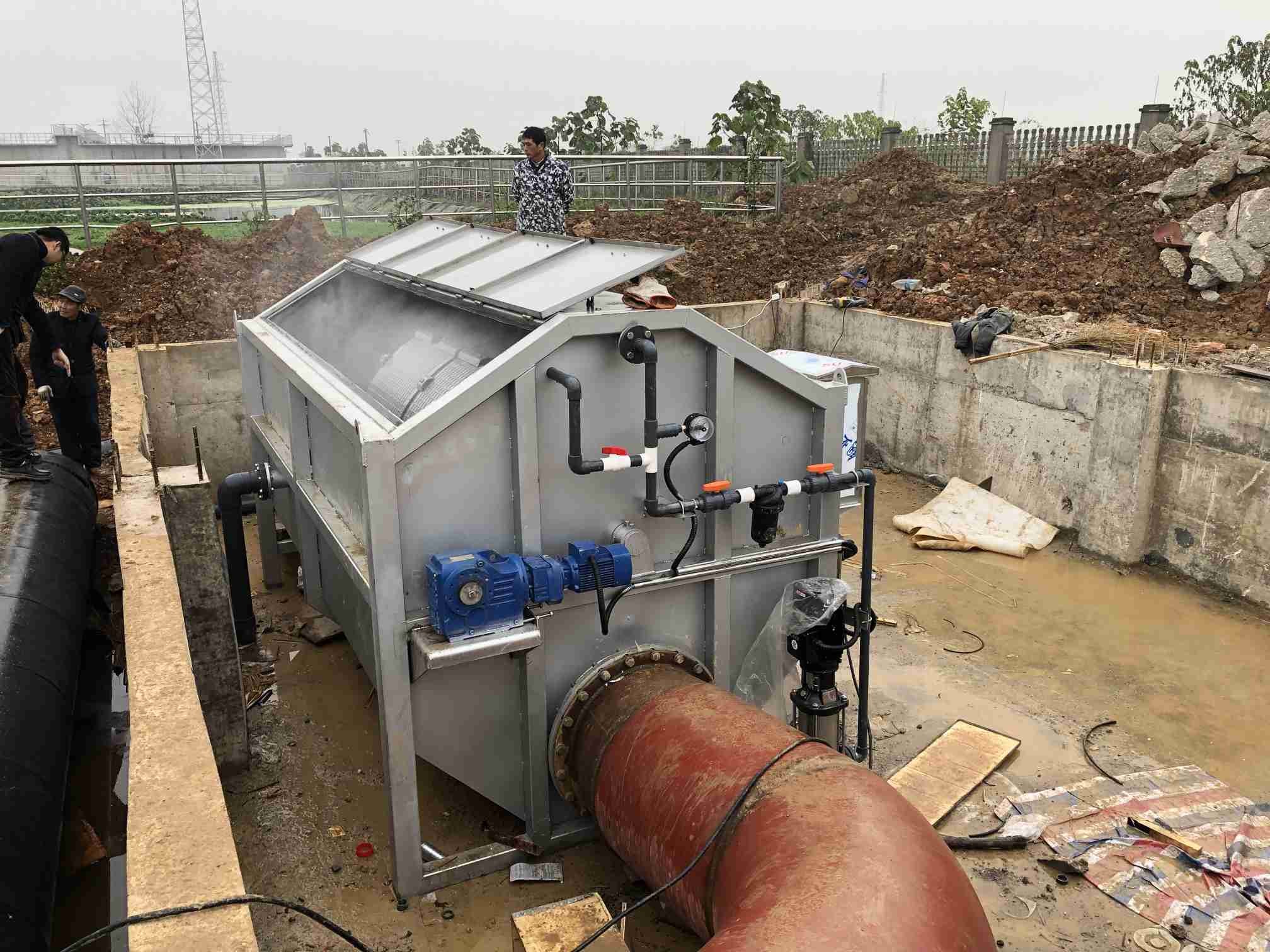

Rotary drum micro filter is a new type of solid-liquid separation equipment, which can effectively reduce the suspended solids (SS) in sewage. Its working principle is: sewage flows into the hollow drum, and due to gravity, it moves from the inner side of the filter to the outer side. Outflow, the suspended solids in the water are trapped inside the stainless steel filter. The rotating drum rotates slowly, and the backwashing pump draws and filters the effluent to backwash the filter screen. The flushing water passes through the nozzle at the top of the drum to flush the filter from the outside to the inside of the filter. The washed particulate matter is collected by the backwash water collection tank and discharged from the equipment through the sewage pipe.

Application

1. Sewage treatment plant: the standard upgrading project of upgrading the effluent from level B to level A

2. Reuse of reclaimed water: Deeply filter the insoluble suspended particulate matter through this equipment to achieve the purpose of water recycling;

3. Industrial wastewater treatment: According to the requirements of different types of industries, this equipment can separate and filter the water used to make the relevant water quality meet the purpose of enterprise use, or meet the relevant environmental protection discharge requirements.

Parameters

Features

1. Excellent filter media performance. The filter medium used in the filter of this equipment is stainless steel. Compared with the fiber cloth and polyester material of the turntable filter, it has many advantages: good pore uniformity, high tensile strength, fast filtering speed, long-lasting durability, not easy to block, and strong corrosiveness resistance.

2. Easy to replace the filter. The independent mesh can be removed independently without affecting other filters.

3. Strong impact resistance. The equipment can operate normally when the inlet water SS is not higher than 40mg/L1.

4. The filter can run continuously. Backwashing and filtering do not affect each other.

Packing and Delivery

1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.

       Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with more than 15 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

       Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

       Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor,Manual and Mechnical Bar Screen ,Bridge Scrapers ,Ordor Control System,Belt/Screw Conveyor,Disc Filter etc."
