China Automatic Chemical Polymer Dosing System Machine For Sewage
Treatment Blender Blade Powder Dosing Machine
■ Introduction
Intelligent dosing equipment uses sensing signals to control the
working process of the dosing pump. This control method requires
monitoring instruments such as pH meters, conductivity meters and
corresponding sensors. First, set the limit value of the control
parameter (pH value or conductivity value) according to the
operation of the system. If the following conditions occur during
the operation of the system, the dosing device will start to work:
if the pH value is lower or higher than the set value. A low pH
value indicates that the acidity is too strong and the system has a
tendency to corrode; a high pH value indicates that the alkalinity
is too strong and the system has a tendency to scale. At this time,
the detection instrument will feed back this signal to the control
system, and the control system will output instructions to the
designated metering pump to turn on the dosing system to adjust the
pH value. After the pH value returns to normal, the metering pump
will be turned off.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 |
|
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 |
| H | 1650 | 1750 | 1800 | 1800 | 2000 |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 |
Why Choose Us?
1. Longdai has more than 10 years of experience in wastewater and sludge treatment.
2. We introduce German technology, thus our product is much better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
To Our Customers:
We are not professional in the picture beautifying, but engaged in
manufacturing almost all kinds of wastewater treatment equipments.
Any question, please feel free to contact us. Thanks.

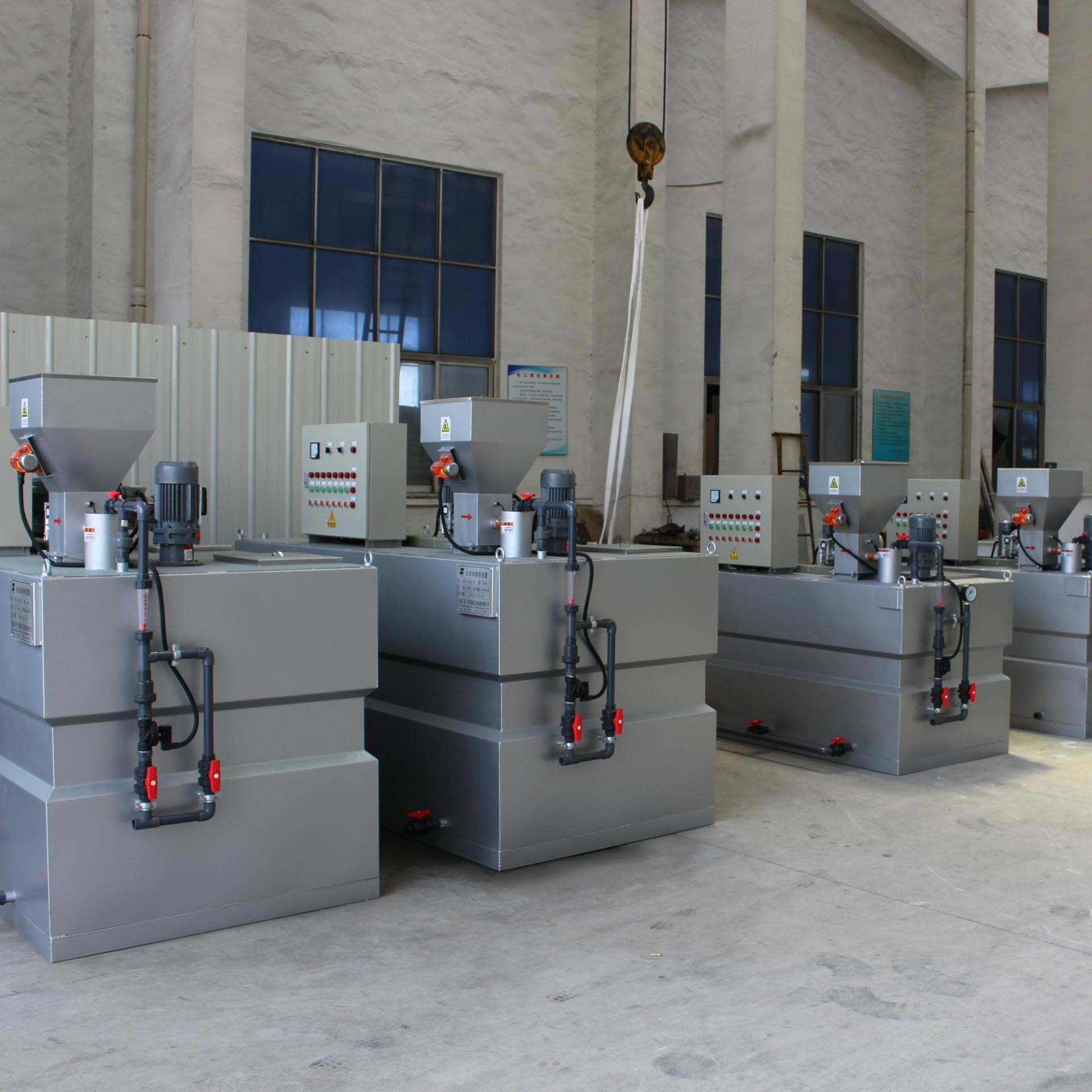

Structure and Working Principle
The device adopts a jet mixer to disperse the medicine or powder
with high-speed water power to increase the fineness, increase the
contact between the medicine or the powder and water, and reduce
the dissolution time. The equipment is prepared by a three-tank
overflow combination, Maturation and dosing, use gravity and
solubility to produce the difference in the specific gravity of the
solution, automatically separate the dissolved and undissolved
ones, and then stir them with a low-speed stirrer to improve the
uniformity of the solution.
■ Main Features
1. Three-tank integrated continuous preparation, easy to operate
and maintain.
2. Dry powder or liquid polymer can be double fed to meet different
needs.
3. The PLC runs fully automatically, saving labor.
4. A screw pump or a metering pump can be used for the
pharmaceutical dosing (the former is conventionally used), and the
measurement is accurate and adjustable.
5. The equipment has no base and fixed, exquisite appearance and
easy maintenance.
Packing and Delivery
1. Waterproof packing with the international export standard by
20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and
Power Cabinet will be packed in Wooden Case or Iron Box. Other
Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will
use Waterproof cloth to pack all of them. The motor, gear box or
other easily damaged parts, we will put them into box. We have a
professional shipping department, they will try their best to save
your container quantity.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or
directly contact us by the clicking the “contact” icon. We Can
Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental
protection equipment ,professional for Sludge screw press
dewatering Machine ,Which Is Very Close To Shanghai With Only Less
Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different
Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000
Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time
Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience.
We Cooperate Over 800 Customers in China And Overseas. We Export
Nearly 60 Countries All Over The World. And We Have More Than
60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field
Maintenance Repair Service
