China Water Treatment SL Type Water Conservancy Pump Station Mechanical Bar Screen

Brief Introduction:
The main business involves petrochemical industry treatment equipment, municipal water affairs, urban sewage treatment equipment, industrial sewage treatment equipment, domestic sewage treatment equipment, pure water equipment, reverse osmosis equipment, water supply purification, waste gas pollution treatment areas.

Main Parameters and Installation Size Chart

Application

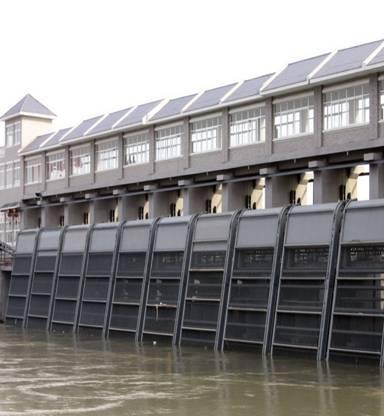

It is mainly used for drainage pumping stations, rivers, and water inlets of large water conservancy pumping stations with large flow rates to intercept large solid floating debris in the water body to ensure the smooth flow of water.

Structure and Working Principle
The equipment adopts a back-down type and a rotary chain type. The water grid surface is composed of a toothed rake plate and a fixed bar. When the sewage flows through, the debris larger than the bar space is intercepted, and the rake teeth of the toothed rake plate penetrate the gap of the bar. When the driving device drives the traction chain to make a rotary movement, the rake teeth bring the debris trapped on the grid surface from bottom to top to the slag outlet. When the rake teeth rotate from top to bottom, the debris relies on gravity to move on its own and fall into the conveyor from the discharge port, and then be transported or further processed.


Main Features
1. The driving device is directly driven by a cycloidal pin wheel or a helical gear reducer motor, which has the characteristics of low noise, compact structure and stable operation;
2. The rake teeth are of oblique tip type and are welded into a whole with the horizontal axis, which can pick up large garbage and sundries;
3. The rack is an integral frame structure, with strong rigidity, easy installation and less daily maintenance work;
4. The equipment is easy to operate, and the operation of the equipment can be directly controlled locally/remotely;
5. In order to prevent accidental overload, it is equipped with double protection of mechanical shear pin and overcurrent to make the equipment operation safe and reliable;
6. A secondary grille is set at the bottom. When the toothed rake turns from the back of the main grille to the front side, the secondary grille is automatically attached to the main grille to prevent the flow of water from short-circuiting and flowing into floating debris


Outline and Installation Chart

1.Motor Mount 2.Tooth Rake 3.Rack 4.Bottom Trash Rack 5.Guide Device 6.Driving Device 7.Slag Baffle 8.Bar Screen
