Inner Flow Fine Mechanical Bar Screen Grille Small Waste Water
Treatment Trash Removal
Brief Introduction
The main products include mechanical bar screen, air flotation
device, dosing device, mud scraper, cooling tower, decanter,
chemical degreasing device, hydraulic screen, sand water separator,
filter, conveyor, thickener , Biological filter, softened water,
buried sewage treatment equipment, etc.
| Operation | automatic |
| Width&Depth | Customize |
| Power | 0.55-3.0 kw |
| Motor | SEW or NISSEI |
| Electrical component | Schneider/Omron/Siemens |
| Warranty | 1 year |
| After-sale service | engineers available |
Application
It is a new type of fine bar cleaning equipment that uses
continuous interception and removal of solid debris in the fluid,
which can achieve an excellent cleaning effect. Such as flat
solids, weeds, melon husks, etc., especially the hair fiber dirt
that is difficult to intercept by traditional fine bars, can
greatly reduce the load of subsequent processing steps.
Main Features
1.The screen plate has a large water-passing area and a high
garbage retention rate.
2. Vertical installation, effectively saving space.
3. Stable operation; the lifting of the stencil is not easy to
overload.
4. Eliminate the problems of fiber and hair entanglement.
5. The unloading aid system composed of rotating brush and flushing
mechanism is adopted, which makes garbage removal cleaner.
6. The filter screen has low friction, wear resistance, not easy to
block, and easy to clean.
7. Fully automatic control can be realized through time and liquid
level difference.
Structure and Working Principle
Sewage enters the middle of one side of the vertical orifice fine
bar cleaning machine, and is discharged from the inside and outside
through the opening grids on both sides. The slag intercepted in
the interior is lifted to the upper slag discharge area with the
rotation of the opening grid. The grid slag is washed by the
washing system into the internal slag collecting tank, and then
sent to the next equipment through the conveying equipment, and the
screen is also washed clean and enters the next working cycle.

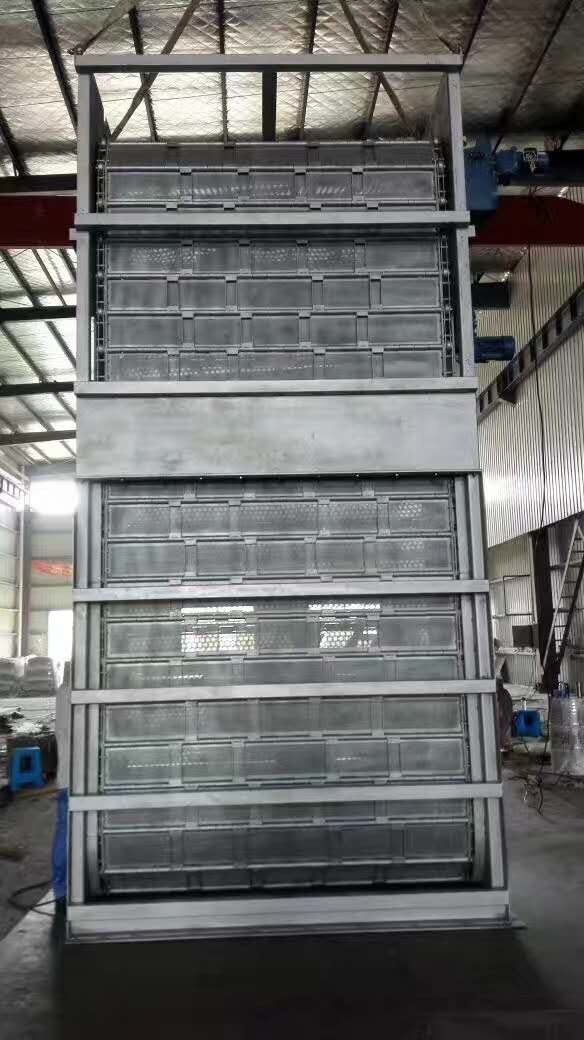

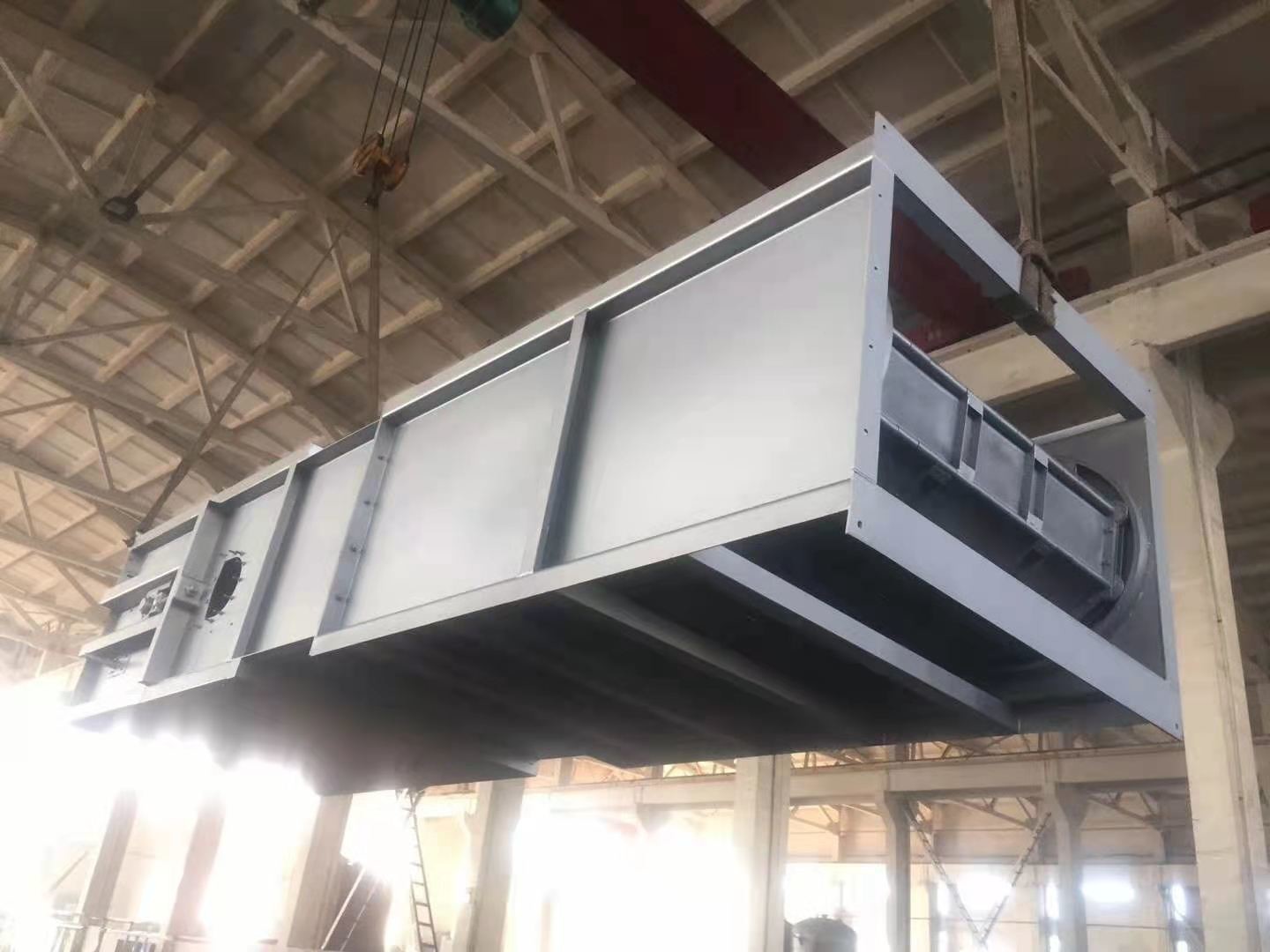

The inner flow screen grid is mainly composed of a main frame, a
rotating screen and a chain, a drive unit, a slag collecting tank,
a backwash system and a control system
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
1. Waterproof packing with the international export standard by
20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and
Power Cabinet will be packed in Wooden Case or Iron Box. Other
Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will
use Waterproof cloth to pack all of them. The motor, gear box or
other easily damaged parts, we will put them into box. We have a
professional shipping department, they will try their best to save
your container quantity.
FAQ:
Q: How Could We Trust You And Your Company? Is This Your First Time
Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience.
We Cooperate Over 800 Customers in China And Overseas. We Export
Nearly 60 Countries All Over The World. And We Have More Than
60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field
Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As
Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free
Of Charge.
