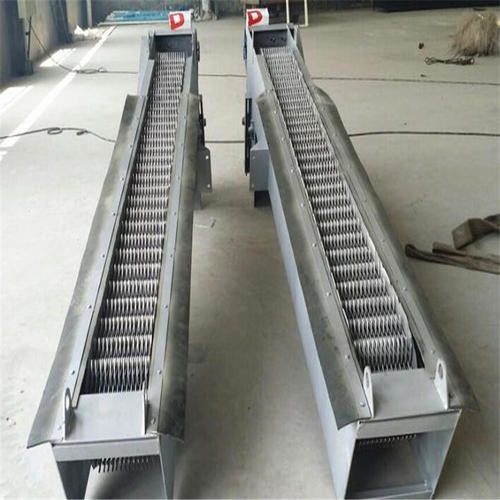

    500mm Mechanical Bar Screen Rotary Solid Liquid Separator

    Ask Lasest Price
    Brand Name : Dongdai
    Model Number : CF1000
    Certification : 9001
    Price : Negotiatable
    Payment Terms : T/T, Wechat Pay, Alipay
    Supply Ability : 1000 Sets per Years
    Delivery Time : 3-5 weeks
    • Product Details
    • Company Profile

    500mm Mechanical Bar Screen Rotary Solid Liquid Separator

    CF Type Water Treatment Rotary Solid-Liquid Separator Mechanical Bar Screen Water Treatment Industry


    Brief Introduction

    Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.


    Application

    CF type rotary solid-liquid separator, it is an advanced water treatment solid-liquid separation equipment, mainly used in urban sewage treatment plants, residential district sewage pretreatment, municipal rain/sewage pumping stations, water plants, and cooling water in power plants, etc. At the water inlet, the equipment is also widely used in water treatment projects in various industries such as textiles, printing and dyeing, food, aquatic products, papermaking, wine making, slaughter, tanning, etc. It is an ideal solid-liquid separation equipment in the water treatment industry.


    Structure and Working Principle

    The equipment adopts a rotary type. A special shape of plow-shaped rake teeth are arranged on the horizontal axis in a certain assembly sequence and number to form a rake tooth chain. According to the flow of water, it is assembled into different gaps and installed in the pumping station or At the entrance of the water treatment system, when the driving device drives the rake chain to move from bottom to top, the sundries in the water are picked up by the rake chain, and the liquid flows through the bar gap. After the equipment rotates to the upper apex, the rake chain changes The running direction is moving from top to bottom. The material will fall off the rake teeth by its own weight. When the rake teeth turn from the reverse side to the bottom of the equipment, they will start another reciprocating continuous operation to continuously remove debris from the water. To achieve the purpose of solid-liquid separation.


    Parameters

    ModelNumber/ParametersCF-500CF-600CF-700CF-800CF-900CF-1000CF-1100CF-1200CF-1300CF-1400CF-1500
    Device width B(mm)500600700800006100011001200130014001500
    Channel Width B1(mm)B+100
    Effective gate width B2(mm)B-157
    Foundation bolt spacing B3(mm)B+200
    Total equipment width B4(mm)B+350

    Rake tooth clearance b

    (mm)

    t=1001≤b≤10
    t=15010<b≤50
    Installation angle α(°)60~85
    Channel depth H(mm)800~12000
    Disport to platform height H1(mm)600~1200
    Total equipment height H2(mm)H+H1+1500

    Rear box frame height H3

    (ww)

    t=100≈1000
    t=150~1100

    Rake tooth running speed v

    (m/min)

    ≈2.1
    power of motor N(kW)0.55~1.10.75~1.51.1~2.21.5~3.0
    head loss(mm)≤20(Without of blockage)
    Civil engineering loadP1(KN)2025
    P2(KN)810
    ΔP(KN)1.52.0

    ModelNumber/ParametersCF-500CF-600CF-700CF-800CF-900CF-1000CF-1100CF-1200CF-1300CF-1400CF-1500
    Water depth before the gate H3(m)1.0

    Overpass - gate flow rate

    V' (m/s)

    0.8

    Interval

    b(mm)

    1

    Overrun water

    Flow rate

    Q

    (m3/s)

    0.030.040.050.060.070.080.080.090.100.110.12
    30.070.090.100.120.140.160.180.200.220.240.26
    50.090.110.140.160.180.210.230.260.280.310.33
    100.110.140.170.210.240.270.300.330.370.400.43
    150.130.160.200.240.270.310.340.380.420.450.49
    200.140.170.210.250.290.330.370.410.450.490.53
    250.140.180.220.270.310.350.390.430.470.51

    500mm Mechanical Bar Screen Rotary Solid Liquid Separator0.55

    300.150.190.230.270.320.360.400.450.490.530.57
    400.150.200.240.290.330.380.420.460.510.550.60
    0.160.200.250.290.340.390.430.480.520.570.61
    50

    Main Features

    1. The driving device is directly driven by a cycloid pin wheel or a helical gear reducer motor, which has the characteristics of low noise, compact structure and stable operation.

    2. The frame is an integral frame structure, with strong rigidity, easy installation and less daily maintenance work.

    3. There are two specifications of rake teeth, the pitch of the rake teeth t=150mm, and the pitch of the rake teeth t=100mm.

    4. The equipment is easy to operate, and the operation of the equipment can be directly controlled locally/remotely.

    5. In order to prevent accidental overload, it is equipped with mechanical shear pin and overcurrent accumulated weight protection to make the equipment operation safe and reliable.

    6. When the equipment is 1500mm wide, in order to ensure the overall strength of the equipment, the parallel connection mode will be adopted.


    500mm Mechanical Bar Screen Rotary Solid Liquid Separator500mm Mechanical Bar Screen Rotary Solid Liquid Separator




    Packing and Delivery

    1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

    2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.


    FAQ:

    Q: Do You Offer After-Sales Service?
    A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service

    Q: How Long is Your Warranty?
    A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.

    Q: What About Your Produce Time? What Kind Of Transportation Do You Offer?
    A:Within 30 Days Against Down Payment. Air, Land & Sea .

    Q: What Kind Of Payment Do You Accept?
    A: T/T, L/C, Paypal, Cash, D/P, D/A, Unionpay
