Sludge dewatering equipment-two-motor 200 stacked screw sludge
dewatering machine-industrial grade
Product Description
The stacked screw sludge dewatering machine is an efficient sludge
dewatering equipment, which can squeeze out the moisture in the
sludge to a large extent.
Work criteria
There is a water storage tank on the back of the machine to
accumulate sludge. There are sludge inlet, sludge outlet and
overflow in the tank. The sludge inlet is connected to the pipeline
through which the sludge enters. The sludge outlet is the channel
through which the sludge accumulates in a sufficient amount in the
tank and enters the next link.
The sludge enters the dosing and mixing process after reaching a
sufficient amount in the storage tank. This is also a box, but it
is bigger. There is an iron plate on the top of the box. Install a
stirrer to mix the sludge and add the agent that enters the sludge.
After the sludge has accumulated to a sufficient amount, it enters
the dehydration process.

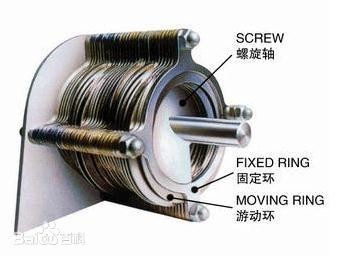

After entering the dewatering section, the solid waste stays in the
channel composed of numerous and tight gaskets, and the waste water
flows out of the gaps between the gaskets. The gap is very small
and only allows water to pass through. The remaining solid
impurities will be intercepted. There are two types of sheets, one
is a fixed gasket and the other is a movable gasket. When the
equipment is running, the movable gasket will make a small circular
motion to facilitate the passage of water.
There is a spiral rod in the circular channel composed of gaskets,
which changes from thinner to thicker evenly like spaghetti. The
closer to the equipment, the thicker the final mud outlet, which
makes the circular channel space in the gasket more and more Small,
so as to achieve the purpose of sludge dewatering and thickening.
Selection table
Specification///model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 |
| Processing capacity(m³/h) | Mud concentration(S.S.0.2-0.5%) | 0.6-1.5 | 1.2-3.0 | 1.8-4.5 | 3.6-9.0 | 6.0-15 | 12-30 | 18-45 |
| Mud concentration(S.S.0.5-2.0%) | 0.25-0.6 | 0.5-1.2 | 0.75-1.8 | 1.5-3.6 | 2.5-6.0 | 5.0-12 | 7.5-18 |
| Mud concentration(S.S.2.0-5.0%) | 0.1-0.25 | 0.2-0.5 | 0.3-0.75 | 0.6-1.5 | 1.0-2.5 | 2.0-5.0 | 3.0-7.5 |
| Absolute dry quantity(kg/h) | Mud concentration(S.S.0.2-0.5%) | 0-3.0 | 2.4-6.0 | 3.6-9.0 | 7.2-18 | 12-30 | 24-60 | 36-90 |
| Mud concentration(S.S.0.5-2.0%) | 0-5.0 | 5.0-10 | 9.0-15 | 18-30 | 30-50 | 50-100 | 90-150 |
| Mud concentration(S.S.2.0-5.0%) | 0-5.0 | 5.0-10 | 9.0-15 | 18-30 | 30-50 | 50-100 | 90-150 |
| Mud cake moisture content(%) | 75-85 | 75-85 | 75-85 | 75-85 | 75-85 | 75-85 | 75-85 |
| Spiral diameter (mm) * quantity (pieces) | 100*1 | 100*2 | 200*1 | 200*2 | 300*1 | 300*2 | 300*3 |
| Use power (KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 |
| Equipment dimensions (mm) | L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 |
| Reference weight (kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 |
Product advantages
1. Powerful dehydration performance
2. With self-cleaning system
3. Fully automatic control
4. Small size
Compared
Q: What is the difference between the 202-type stacked screw sludge
dewatering machine and the 303 and 101 types?
A: The number in front of the screw-type sludge dewatering machine
represents the size of the internal cavity of the current model of
equipment and the number of motors. Taking 202 as an example, 202
can be understood as 200+2, which means that the dewatering cavity
of the equipment is 200mm in diameter. There are two such inner
cavity spaces, one space corresponds to one motor, that is, there
are two motors. The 303, 101, and 202 models have the same principle, which respectively
represent 3 300mm cavities with 3 motors and a 100mm cavity with 1
motor.
Q: What is the difference between industrial grade and urban and
rural grade?
A: These two levels represent the meticulousness of the equipment.
Industrial grade accessories are usually 304 and 316 grade
stainless steel, while urban and rural grades are ordinary
stainless steel. The internal processes of some equipment will also
be different, such as the thickness of plastic lining, etc.
