Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H

Jiangsu Longdai Environmental Protection Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H from wholesalers

    Buy cheap Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H from wholesalers
    • Buy cheap Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H from wholesalers
    • Buy cheap Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H from wholesalers
    • Buy cheap Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H from wholesalers
    • Buy cheap Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H from wholesalers

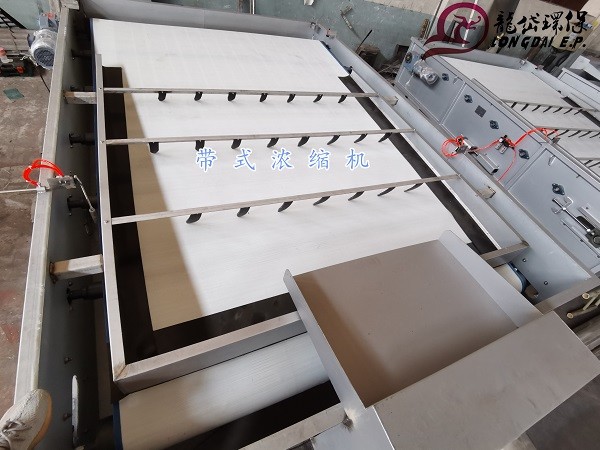

    Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H

    Ask Lasest Price
    Brand Name : longdai
    Model Number : DNT-500
    Certification : iso9001
    Price : Negotiable price
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets
    Delivery Time : 30-120 days
    • Product Details
    • Company Profile

    Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H

    500mm Gravity Sludge Thickener , 5m3/H Gravity Belt Thickener Sludge Belt Filter Press


    Brief Introduction

    Our products include mechanical bar screen, air flotation device, dosing device, mud scraper, cooling tower, decanter, chemical degreasing device, hydraulic screen, sand water separator, filter, conveyor, thickener , Biological filter, softened water, buried sewage treatment equipment, etc.


    Product Introduction

    The DN belt sludge thickener is a fully automatic sludge thickener that can replace the traditional sludge thickening tank. It can directly thicken the secondary settling tank quickly and continuously, and the sludge concentration after concentration and separation is 90-96 It is stable and adjustable within the range of %. After using this equipment, there is no need to build a sludge thickening tank, which greatly reduces construction investment and floor space. This model adopts international advanced technology and the most advanced design concept, which can meet the requirements of different industries Mud treatment needs.

    Parameter / modelDNT-500DNT-1000DNT-1500DNT-2000DT-2500DNT-3000
    Filter - band width b(mm)50010001500200025003000
    Handling capacity Q(m3/h)5~1010~2020~3030~4040~6060~80
    Outline dimension (BxLxH)1200x5160x23501700x5160x23502200x5160x25702700x5160x25703200x5300x25703700x5300x2570

    Filter - belt running speed V(m/min)

    Concentrate motor power N1(KW)

    3.0~15(enriching section ),1.2~6.0( dewatering period )
    0.550.550.751.11.51.5
    Dewatering motor power N2(KW)0.751.12.23.03.05.0
    Hecharge discharge height h(mm)125012501500150018001800
    Wash water

    Water consumption

    (m3/h)

    4.07.512.015.025.030.0
    Water gage(MPa)≥0.5
    Compressed air

    Gas consumption

    (m3/h)

    0.30.30.40.40.40.4
    Pressure(MPa)≥0.7
    Ineding water content(%)99.61/99.0
    Water content rate of mud cake (%)80/78
    Dry mud(kgds/h·m)110~130
    hydraulic load (m3/h·m)22~26/12~16
    Installation size (ww)B1185024502950345039504450
    B2135019502450295034503950
    B3115017502250275032503750
    B495014501950245029503450
    B580013001800230028003300
    L1530053005650565058505850
    L2250250250250300300
    L3460046004950495050505050
    H1200200250250250250
    H2150150150150150150
    H3300300300300300300

    Product advantages

    1. The bearings and filter cloths of the belt concentrator are international first-line brands, which can ensure the normal operation of the equipment;
    2. The PAM selection requirements are not too strict, and the dosage can be appropriately reduced. The cost in the later operation is very high. Good control;
    3. Wide range of sludge thickening, using various types of sludge moisture content range 98~99.8%;
    4. After thickening, the sludge moisture content is stable and adjustable within the range of 90~96%;
    5. This model is full Automatic control, continuous operation, simple maintenance and management.


    Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H


    Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H


    Rotary Drum Gravity Belt Thickener Sludge Belt Filter Press 500mm 5m3/H

    Packing and Delivery


    1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

    2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.


    FAQ:
    Q: Are You Trading Company Or Manufacture?
    A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.

    Q : What Are Your Main Products?
    A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.

    Q: How Can I Find The Suitable Model?
    A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.

    Q: Where Is Your Factory Located?
    A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

    Q: Do You Provide OEM Service?
    A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

    Q: How About The Production Capacity Of Your Company?
    A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.

    Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
    A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.


    Q: Do You Offer After-Sales Service?
    A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service

    Q: How Long is Your Warranty?
    A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
