Bridge Style Desanding Equipment , 4m Sand Sucking Machine Skimming Devices

Brief Introduction
Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.

Parameters

Main Features
1. Reciprocating sand suction and slag skimming, high efficiency and simple structure.
2. The vortex low-lift submersible pump is used to suck sand, no water diversion operation is required, no blockage, wear-resistant, safe and reliable.
3. One-way skimming makes the pool surface cleaner.
4. After the grit is aerated and circulated, the organic matter on the sand has been washed, and the discharged sand has no odor.
5. The equipment is easy to operate, and the operation of the equipment can be directly controlled locally/remotely.
Application
This type is mainly used for sand water treatment in the aeration grit tank of urban sewage treatment plants or water plants, and lifts the sand, cinder and other large particles and sewage mixture that settle at the bottom to the sand discharge tank beside the pool Inside; according to user requirements, oil skimming and slag skimming devices can be added.

Structure and Working Principle

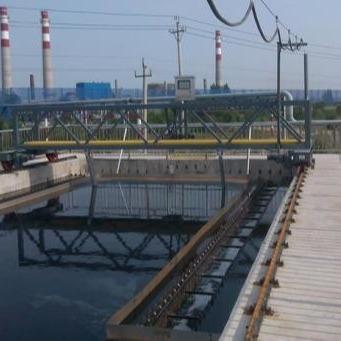

The equipment adopts mobile bridge type and pump suction type. When the sand suction machine is not working, it stops at the water inlet; when the sand suction machine is working, the driving is under the instruction of electrical control. Slag board, scrape the scum and skim it into the steel skimmer tank at the end of the pool; when driving in the reverse direction, the skimmer rake lifts and leaves the liquid surface to prevent the scum from going backwards; the sand at the bottom of the pool is drained by the sand suction pump through the suction pipe Into the sand collection tank by the pool, and then flow into the sand-water separator through the pipeline, and proceed to the next step of processing. According to this, the reciprocating movement is performed to achieve the purpose of sand absorption, sand discharge, and slag skimming.






Main Parameters and Installation Size Chart


Outline and Installation Chart


Packing and Delivery


1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.

About Us
Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.

FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.

       Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with more than 15 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

       Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

       Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor,Manual and Mechnical Bar Screen ,Bridge Scrapers ,Ordor Control System,Belt/Screw Conveyor,Disc Filter etc."

       Work follows 5 principles:

1.Sales

       The sales team keeps abreast of market prices and provides customers with the most accurate and most favorable quotations.

2.design

       The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

3.manufacture

       The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

4.transportation

       The transportation team has been to every corner at home and abroad, and has never made any mistakes, planning the best route, and transporting equipment for customers is the fastest and safest.

5.quality

       The company has passed ISO9001-2008 international standard quality system certification.

       We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
