1500L/h integrated automatic dosing device PAC/PAM chlorine acid alkali dosing equipment

The dosing device is a complete set of equipment with the functions of dosing, mixing and dissolving, mixing and diluting, storing chemical solution, conveying fluid, automatic monitoring and control. It is widely used in various dosing systems and waste water treatment systems in the fields of power plant raw water, boiler feed water, oil field ground dehydration treatment, petrochemical industry and so on.

Application scenarios

Thermal power industry / petroleum, chemical industry / medical, electronic industry / municipal water supply, swimming pool,water plant, sewage treatment building domestic water / industrial circulating water, industrial wastewater treatment.

Parameters

Type		QJY-500	QJY-1000	QJY-1500	QJY-2000	QJY-3000
production abilityQ(L/h)		500	1000	1500	2000	3000
Size		900x1500x1650	1000 x 1625 x1750	1000 x 2440x1800	1220 x 2440 x180C	1220x3200x2000
Powder Dosing PowerNi(KW)		0.18	0.18	0.18	0.18	0.18
blender	Blade diameterG(mm)	250	250	250	250	250
	Vertical spindle speed(i/min)	96	96	96	96	96
	PowerN2(KW)	0.55 x 2	0.55x2	0.55 x 2	0.55x2	0.55x2
Dosing screw pump	Flow Q2(mV h)	1	1	1.5~2.0	1.5-2.0	3.0~ 5.0
	Lifth(m)	20	20	20	20	20
	Power N3(KW)	1.1	1.1	1.5	1.5	2.2
Water Inlet Dia(mm)		20	20	25	25	32
Water outlet Dia(mm)		20	20	25	25	32
Installation	B	900	1000	1000	1220	1220
	L	1500	1625	2440	2440	3200
	H	1650	1750	1800	1800	2000
	Hi	800	1050	1050	1050	1350

Usage method

The user configures the medicament according to the proportion of the feeding solution and feeds it through the metering pump
1. Connect the dosing device, and then check and tighten each flange interface to avoid fluid leakage.
2. Connect the power supply of the metering pump:
(1) Open the junction box of the electric control cabinet, and connect the three-phase four wire power line that meets the
requirements of the metering pump motor to the corresponding terminal.
(2) Start the mixer instantaneously by controlling the operation switch, observe the rotation of the motor, and fix the junction box if the rotation is correct. If the direction of rotation is incorrect, adjust the phase sequence and then fix the junction box.
3. Close the blow down valve. Fill the liquid medicine container with liquid medicine.
4. Open the valve of dosing system and start the metering pump.

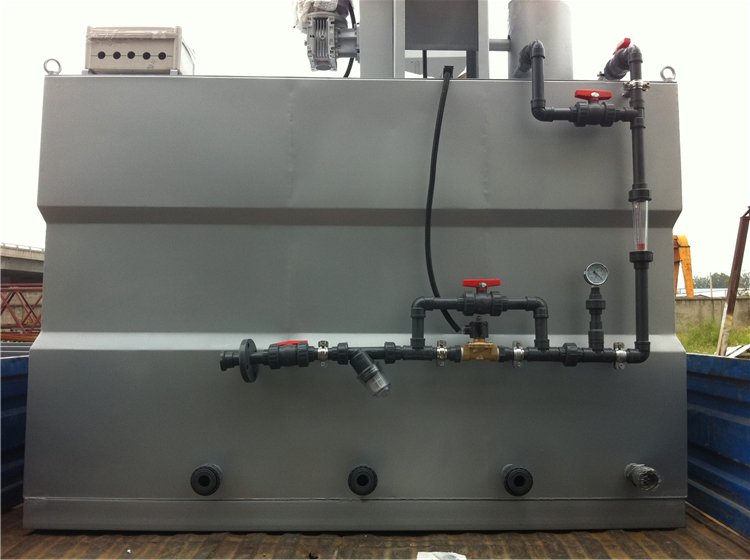

Real picture
