industrial multi-media filter fully automatic activated carbon quartz sand filter

Multi media filter is a process that uses one or several filter media to pass water with high turbidity through granular or non granular materials with a certain thickness under a certain pressure, so as to effectively remove suspended impurities and make water clear. The commonly used filter media are quartz sand, anthracite, manganese sand, etc., which are mainly used for water treatment turbidity removal, softened water, pre pretreatment of pure water, etc. The turbidity of the effluent can be less than 3 degrees.

working principle

Take the three-layer medium filter as an example. Due to the limitation of density difference, the selection of filter materials is basically fixed. The upper filter material plays a role of coarse filtration and the lower filter material plays a role of fine filtration, so that the role of the multi-media filter bed can be fully played, and the effluent quality is obviously better than that of the single layer filter bed. For drinking water, anthracite, resin and other filter materials are generally prohibited.

Filter characteristics

Take the three-layer filter bed as an example, the upper filter material has a large particle size and is composed of light filter materials with small density, such as anthracite and activated carbon; The particle size and density of the middle layer filter material are in the middle, generally composed of quartz sand; The lower filter material is composed of heavy filter material with smaller particle size and higher density, such as magnetite.

Product features

Multi-media filtration permits delivery of high quality filtered water at much faster flow rates, as compared to a conventional sand filter. In a conventional sand filter, lighter and finer sand particles are found at the top of the filter bed, and coarser, heavier sand particles remain at the bottom after backwashing.

Product category

The common multi-media filters used in water treatment are: anthracite quartz sand magnetite filter, active carbon quartz sand magnetite filter, active carbon quartz sand filter, quartz sand ceramic filter, etc.

Parameter

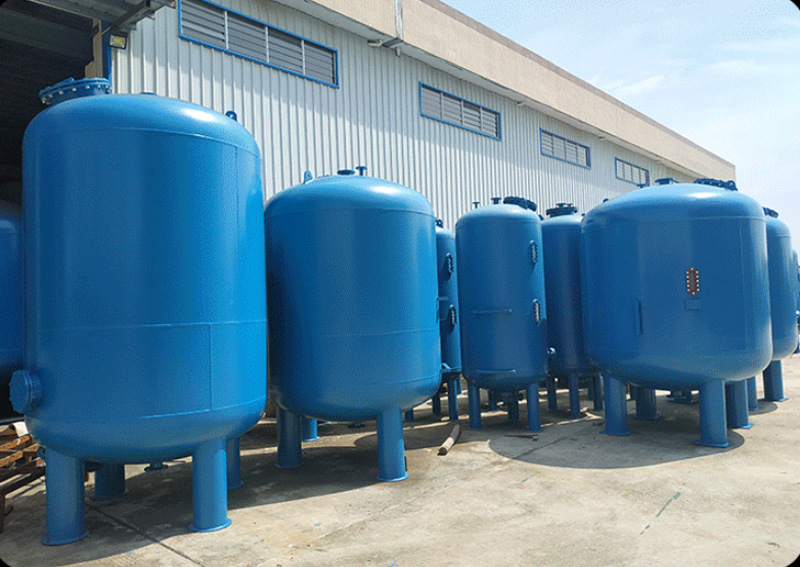

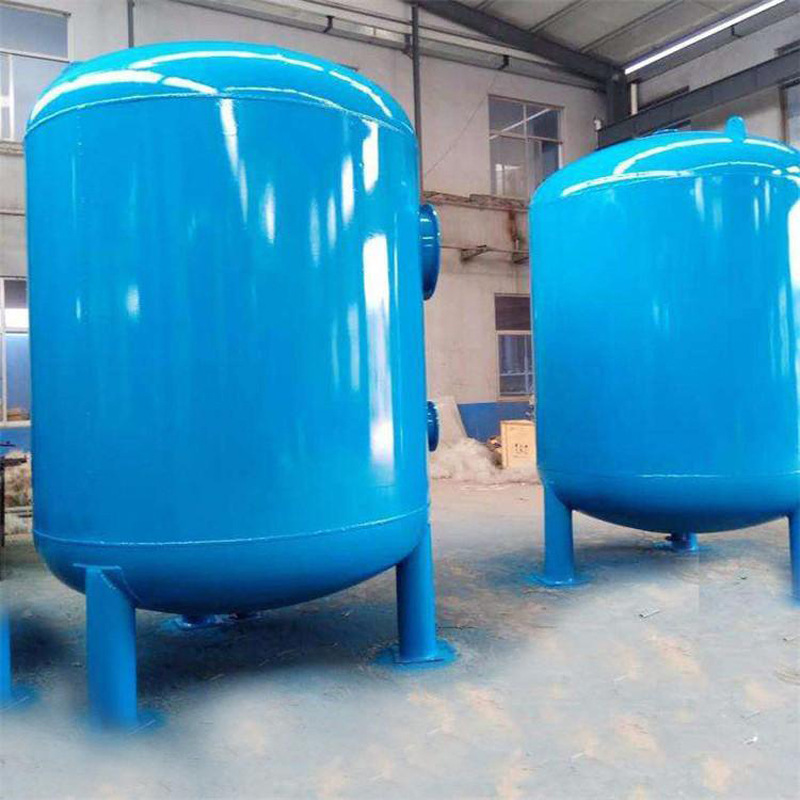

Product pictures
