Industrial Volute Sludge Dewatering Machine for Poultry Duck Pig Fecal

industrial volute sludge dewatering machine poultry duck and pig fecal sludge treatment equipment

1. Concentration: When the screw drives the shaft to rotate, the multiple fixed and movable laminations around the drive shaft move relatively. Under the action of gravity, water is filtered out from the relatively moving lamination gap to achieve rapid concentration.

2. Dehydration: the thickened sludge moves forward with the rotation of the spiral shaft; Along the outlet direction of the mud cake, the screw pitch of the spiral axis gradually decreases, the gap between rings also gradually decreases, and the volume of the spiral chamber continuously shrinks; Under the action of the back pressure plate at the outlet, the internal pressure gradually increases. Under the continuous operation of the screw driven shaft in turn, the water in the sludge is squeezed out,and the solid content of the filter cake continues to increase. Zui finally realizes the continuous dehydration of the sludge.

3. Self cleaning: the rotation of the spiral shaft drives the traveling ring to rotate continuously. The equipment realizes a continuous self-cleaning process relying on the movement between the fixed ring and the traveling ring, thereby ingeniously avoiding the common blockage problem of the traditional dehydrator.

Working Principle

Small design
1. Compact design, the dehydrator includes electric control cabinet, metering tank, flocculation mixing tank and the main body of the dehydrator.
2. Small floor space, convenient for maintenance and replacement; Small weight, easy to carry.

Not easy to block
1. It has self-cleaning function. It is not necessary to clean to
prevent the filter seam from clogging, reduce the water consumption
for flushing and reduce the burden of internal circulation.
2. Be good at dewatering oily sludge.

Low speed operation
1. The rotating speed of the spiral shaft is about 2~3 rpm, with
low electrode consumption.
2. Less faults, less noise and vibration, and safe operation.

Simple operation
1. Through the electric control cabinet, it can be linked with the
medicine bubbling machine, the mud pump, the dosing pump, etc.to
achieve 24-hour continuous unmanned operation.
2. The daily maintenance time is short and the maintenance
operation is simple.

Parameters

Specification and dimension Model		DL-101	DL-102	DL-201	DL-202	DL-301	DL-302	DL-303
Handling capacity (m3／h)	Ind concentration S．S．0.2～0.5％)	0.6~1.5	1.2~3.0	1.8~4.5	3.6~9.0	6.0~15	12~30	18~45
	Ind concentration (S．S．0.5～2.0％)	0.25~0.6	0.5~1.2	0.75~1.8	1.5~3.6	2.5~6.0	5.0~12	7.5~18
	Ind concentration (S．S．2.0～5.0％)	0.1~0.25	0.2~0.5	0.3~0.75	0.6~1.5	1.0~2.5	2.0~5.0	3.0~7.5
Exdry amount (kg／h)	Ind concentration (S．S．0.2～0.5％)	0~3.0	2.4~6.0	3.6~9.0	7.2~18	12~30	24~60	36~90
	Ind concentration (S．S．0.5～2.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
	Ind concentration (S．S．2.0～5.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
Water content of mud cake (％)		75~85	75~85	75~85	75~85	75~85	75~85	75~85
Spirical Didiameter (mm)x Quantity (root)		100x1	100x2	200x1	200x2	300x1	300x2	300x3
Power (KW)		0.2	0.3	0.6	0.8	0.8	1.2	1.95
contour size of the unit(s) (ww)	L	1816	1816	2500	2500	3255	3455	3605
	W	756	910	850	935	985	1295	1690
	H	1040	1040	1270	1270	1600	1600	1600
Reference Weight(kg)		190	275	360	470	820	1350	1820

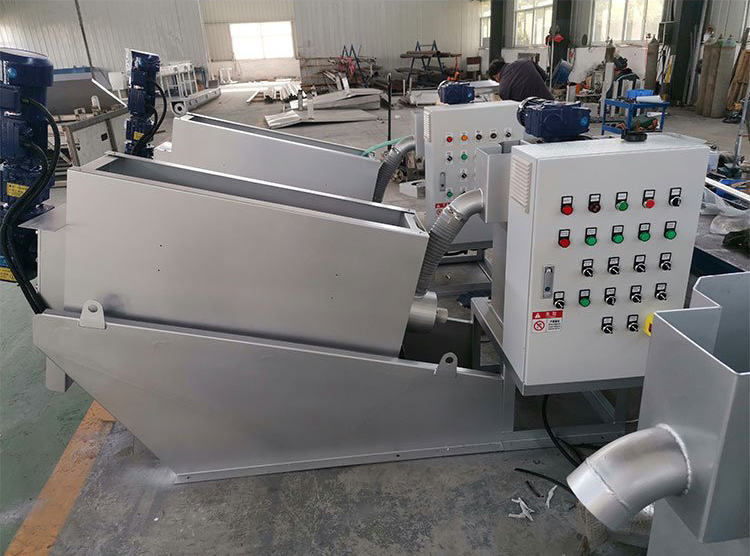

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."

The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.

The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.

The company has passed ISO9001-2008 international standard quality
system certification.

We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
