Stainless Steel Half Bridge Peripheral Drive Sludge Scraper Sedimentation Tank

Ask Lasest Price
Brand Name :	longdai
Model Number :	ZBG-5
Certification :	ISO9001 CE
Price :	Negotiatable
Payment Terms :	L/C, T/T
Supply Ability :	1500 sets per Years
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

Stainless Steel Half Bridge Peripheral Drive Sludge Scraper Sedimentation Tank

Stainless steel half bridge peripheral drive mud scraper manufacturer sedimentation tank sludge treatment equipment

The whole machine is mainly composed of half (full) bridge, driving device, central rotary support, movable arm, mud scraper, skimming device, water weir and other steel structures. The equipment is widely used for scraping and removing sludge from large and medium-sized radial flow sedimentation tanks. The structure is central buttress, peripheral transmission, and scum removal device.
At the same time, the equipment is also an ideal sludge discharge equipment with remarkable energy-saving effect and convenient daily maintenance.

Working Principle

Half bridge peripheral drive mud scraper: sewage flows out evenly from the inlet pipe in the center of the pool to the periphery in a radial manner after diffusion through the diversion cylinder. Suspended sludge is deposited at the bottom of the pool after sedimentation. The supernatant is discharged from the tank through the overflow weir plate, and the sludge is scraped from the periphery of the pool to the central sludge sump through the scraper plate. The sludge is discharged from the pool through the sludge discharge pipe depending on the water pressure in the pool.

Product features

1. Large processing capacity can save floor space.
2. The equipment only needs one motor, which saves energy and electricity consumption.
3. The sludge concentration that can be scraped is high and the sludge discharge effect is good.
4. The scraper has simple structure, safe and reliable operation and convenient maintenance.
5. Good adaptability, easy to realize full automatic control.

Order description

1. Please indicate when skimming device, outlet weir plate, scum baffle and outlet tank are required;
2. Indicate equipment material, anti-corrosion, motor and reducer requirements;
3. When ordering, please provide the civil engineering process drawing of the pool and indicate the detailed dimensions.

Parameter

Model Number / Parameters		ZBG-16	ZBG-20	ZBG-25	ZBG-30	ZBG-35	ZBG-40	ZBG-45	ZBG-50	ZBG-55
Pool diameter Φ(m)		16	20	25	30	35	40	45	50	55
Deep pool depth H(m)		3.5～4.5(According to the user's requirements)
Pool side water depth H2(m)		3.0～4.0(According to the user's requirements)
Around the line speed v(m／min)		2.0~3.0
Walking wheel dimensions (mm)		Φ400x120					Φ120x450
power of motor N(KW)		0.37			0.55				0.75
installation size (mm)	Φ1	1100	1100	1200	1200	1500	1500	1800	1800	1800
	Φ2	2500	2500	2500	3500	4000	4500	5000	5500	6000
	Φ3	2600	3000	3800	4500	4500	5000	5000	6000	6000
	Φ4	2100	2300	3500	4000	4000	4000	4500	4500	4500
	H2	500	500	600	760	760	760	760	760	760
	B	According to the user's requirements
	H3	According to the user's requirements
	L	According to the user's requirements
Around the wheel pressure P1(KN)		9.0	11.5	15	19	22	25	28	30	32
Vertical load of the central platform P2(KN)		17	23	30	37	82	100	112	122	175
Center load of center load P3(KN)		9.5	13	17	22	28	28	30	32	40

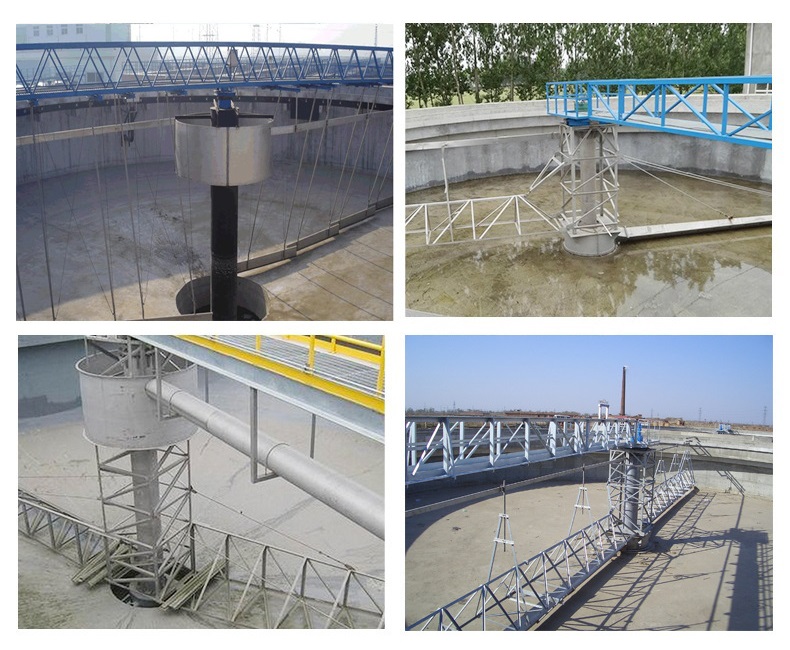

Real Picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."

The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.

The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.

The company has passed ISO9001-2008 international standard quality
system certification.

We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.

FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept? A: T/T, L/C, PAYPAL, Cash,
D/P, D/A, WESTERN UNIION, MONEYGRAM
