Oily sludge spiral sludge dewatering machine food factory
petrochemical sludge dewatering equipment
The spiral type sludge dehydrator uses its unique and delicate
filter body mode to replace the traditional filter cloth and
centrifugal process. It has the characteristics of low consumption,
low energy consumption, low operation, compact arrangement, small
space occupation, high technical content, easy maintenance and
transportation, and is deeply loved by the majority of users. It is
widely used in sewage treatment stations, township sewage plants,
small and medium-sized sewage plants and other places.
Tectonic principle
The screw stacking main body of the dehydrator is a filtering
device formed by the overlapping of the fixed ring and the
traveling ring, and the spiral shaft runs through it. The front
section is the concentration section, and the rear section is the
dehydration section. The filter gap formed between the fixed ring
and the traveling ring and the screw pitch of the spiral shaft
gradually decrease from the concentration section to the
dehydration section. The rotation of the spiral shaft drives the
sludge to be transported from the thickening section to the
dewatering section, and also drives the traveling ring to clean the
filter seams to prevent clogging.
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 |
Handling capacity (m3／h) | Ind concentration S．S．0.2～0.5％) | 0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
Ind concentration (S．S．0.5～2.0％) | 0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 |
Ind concentration (S．S．2.0～5.0％) | 0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 |
Exdry amount (kg／h) | Ind concentration (S．S．0.2～0.5％) | 0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
Ind concentration (S．S．0.5～2.0％) | 0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 |
Ind concentration (S．S．2.0～5.0％) | 0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 |
| Power (KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 |
contour size of the unit(s) (ww) | L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820
|

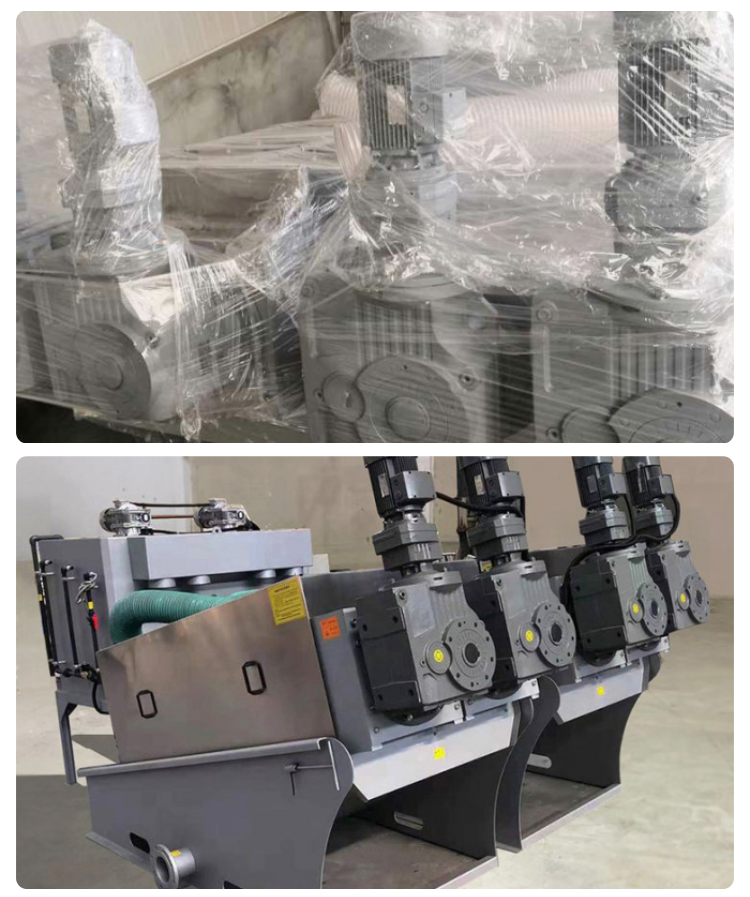

Real picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an
environmental protection equipment manufacturer with 11 years of
experience. It has provided a large number of sophisticated
environmental protection equipment at home and abroad, established
three branches in China, and cooperated with many universities to
build Longdai R&D center. There are 4 middle doctors, 10
masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."
The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.
The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.
The company has passed ISO9001-2008 international standard quality
system certification.
We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.
FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
