PH acid and alkali automatic dosing device chlorine dioxide slow
release agentindustrial sewage dosing system
According to the required concentration of the agent, it is
prepared in the mixing box. After being stirred evenly by the
agitator, it is put into the solution tank. The metering pump
(dosing pump) is used to transport the prepared solution to the
dosing point or the designated system. The device can also carry
out targeted design and configure necessary components according to
the requirements of different process flows of users, so as to
achieve suitable functions (such as automatic remote control),
economic and practical.
Equipment structure
The dosing device is mainly composed of solution tank, mixing tank
(with agitator), metering pump, level gauge, electric control
cabinet, pipeline, valve, relief valve, check valve, pressure
gauge, filter, base, escalator, etc. (can be configured according
to the actual requirements of users).
Application
1. Dissolve, stir and add coagulant, coagulant aid, disinfectant,
bleach, polyelectrolyte, lime slurry and other solutions in water
engineering.
2. Preparation and dosing of various acid and alkali solutions.
3. Preparation and dosing of regeneration liquid in softening and
desalting water treatment.
4. Configuration and dosing of circulating cooling water quality
stabilizer.
5. Dosing and preparation of various industrial additives.
Equipment characteristics
1. The metering pump and main control components are of Chinese
famous brands, fully automatic control, without manual management.
2. Generally, one tank, one pump and one electric mixer form a
complete system;
3. It can also be combined to form multiple structures such as two
tanks, two pumps and multiple tanks
4. It can be used for the mixing, preparation and dosing of liquid
liquid, solid liquid and gas-liquid pharmaceutical solutions.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 |
|
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 |
| H | 1650 | 1750 | 1800 | 1800 | 2000 |
| Hi | 800 | 1050 | 1050 | 1050 | 1350
|

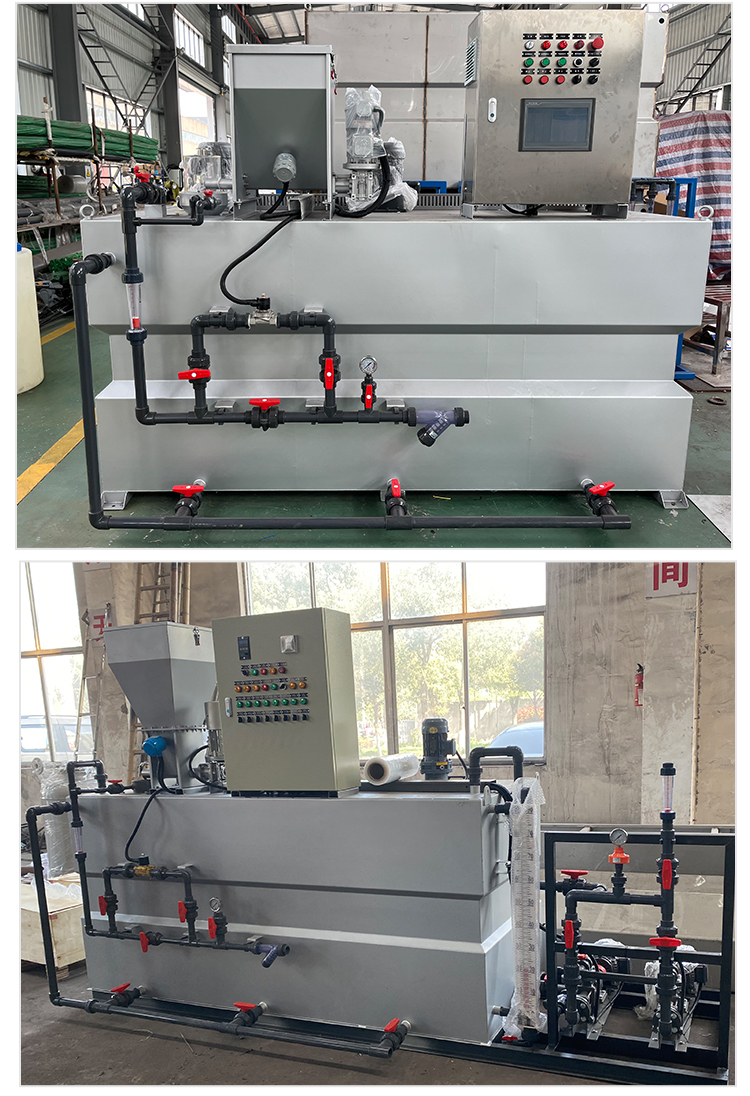

Real picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an
environmental protection equipment
manufacturer with 11 years of experience. It has provided a large
number of sophisticated
environmental protection equipment at home and abroad, established
three branches in China, and cooperated with many universities to
build Longdai R&D center. There are 4 middle doctors, 10
masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment,
Waste Gas Collection and Treatment, Industrial Wastewater
Treatment, etc."
Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water
separator, mud scraper, air flotation device, dosing device, sludge
thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.
The processing team controls the manufacturing details of each
equipment, and manufactures
the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality
system certification.
We look forward to contacting you, please give us a chance. I hope
we can trust each other for
mutual benefit and win-win results.
