Spiral Type Screw Press Sludge Dewatering Machine SS 304 Material

Ask Lasest Price
Brand Name :	longdai
Model Number :	LD-304
Certification :	ISO9001
Price :	Negotiatable
Payment Terms :	L/C, T/T
Supply Ability :	2000 sets per Years
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Spiral Type Screw Press Sludge Dewatering Machine SS 304 Material

spiral type screw press sludge dewatering machine food factory sludge solid liquid separation sewage treatment equipment

The stacked screw type sludge dehydrator skillfully uses the multiple ring piece automatic cleaning and filtering technology to replace the traditional filter screen filtering. The self cleaning and filtering technology ensures the continuous and stable sludge water separation effect of the dehydrator. The squeeze dewatering of sludge is realized through the strong squeeze pressure generated by the change of screw diameter and screw pitch, and the small gap between the movable ring and the fixed ring. It is a new type of solid-liquid separation equipment.

Main Features

1. The screw stacking dehydrator has the characteristics of small floor area, less flushing water, low noise, good workshop environment, etc.
2. It is used for the direct dehydration of activated sludge in small sewage stations, and the design of sludge thickener can be canceled in the construction of sewage stations to save costs.
3. At the same sludge treatment capacity, compared with the centrifugal dehydrator, the spiral type dehydrator can save 85% energy and occupy only half of its floor space; In terms of surface cleaning, it can save 95% water compared with the belt dehydrator.

Parameters

Specification and dimension Model		DL-101	DL-102	DL-201	DL-202	DL-301	DL-302	DL-303
Handling capacity (m3／h)	Ind concentration S．S．0.2～0.5％)	0.6~1.5	1.2~3.0	1.8~4.5	3.6~9.0	6.0~15	12~30	18~45
	Ind concentration (S．S．0.5～2.0％)	0.25~0.6	0.5~1.2	0.75~1.8	1.5~3.6	2.5~6.0	5.0~12	7.5~18
	Ind concentration (S．S．2.0～5.0％)	0.1~0.25	0.2~0.5	0.3~0.75	0.6~1.5	1.0~2.5	2.0~5.0	3.0~7.5
Exdry amount (kg／h)	Ind concentration (S．S．0.2～0.5％)	0~3.0	2.4~6.0	3.6~9.0	7.2~18	12~30	24~60	36~90
	Ind concentration (S．S．0.5～2.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
	Ind concentration (S．S．2.0～5.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
Water content of mud cake (％)		75~85	75~85	75~85	75~85	75~85	75~85	75~85
Spirical Didiameter (mm)x Quantity (root)		100x1	100x2	200x1	200x2	300x1	300x2	300x3
Power (KW)		0.2	0.3	0.6	0.8	0.8	1.2	1.95
contour size of the unit(s) (ww)	L	1816	1816	2500	2500	3255	3455	3605
	W	756	910	850	935	985	1295	1690
	H	1040	1040	1270	1270	1600	1600	1600
Reference Weight(kg)		190	275	360	470	820	1350	1820

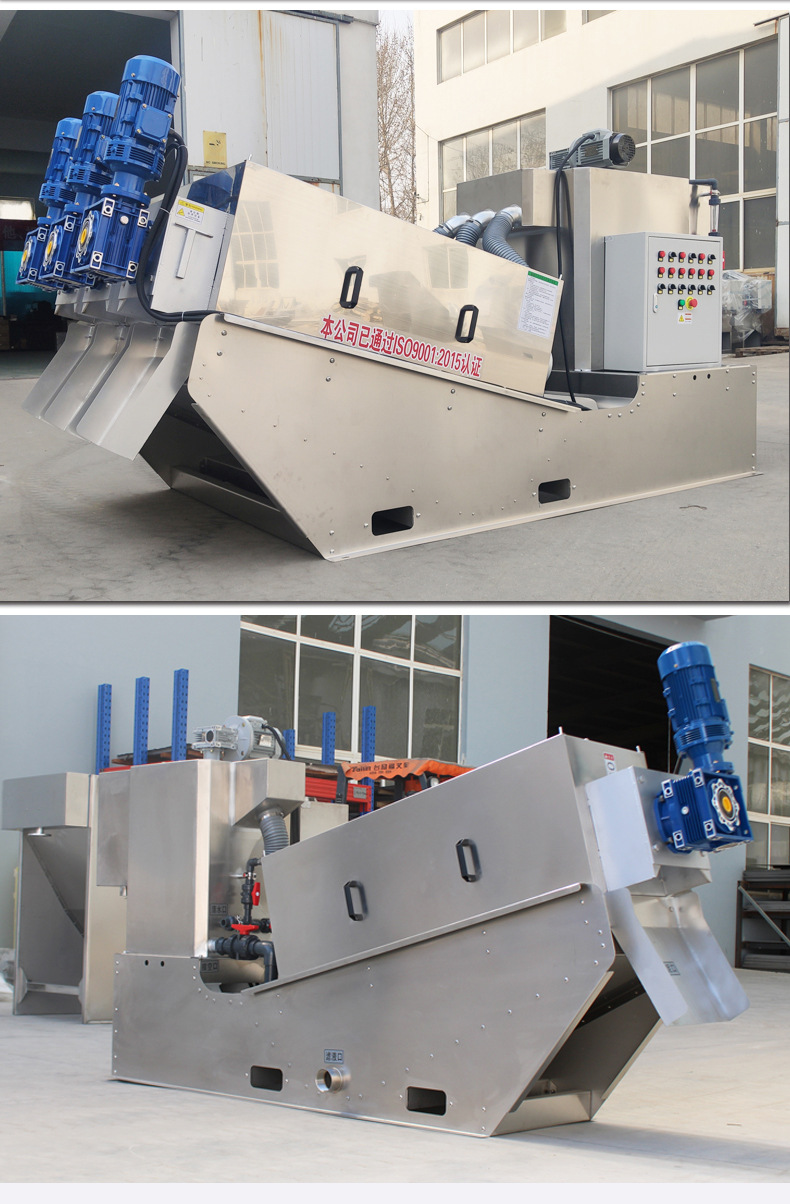

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."

The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.

The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.

The company has passed ISO9001-2008 international standard quality
system certification.

We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
