sewage treatment dosing device Manufacturer fully automatic integrated dry powder dosing system

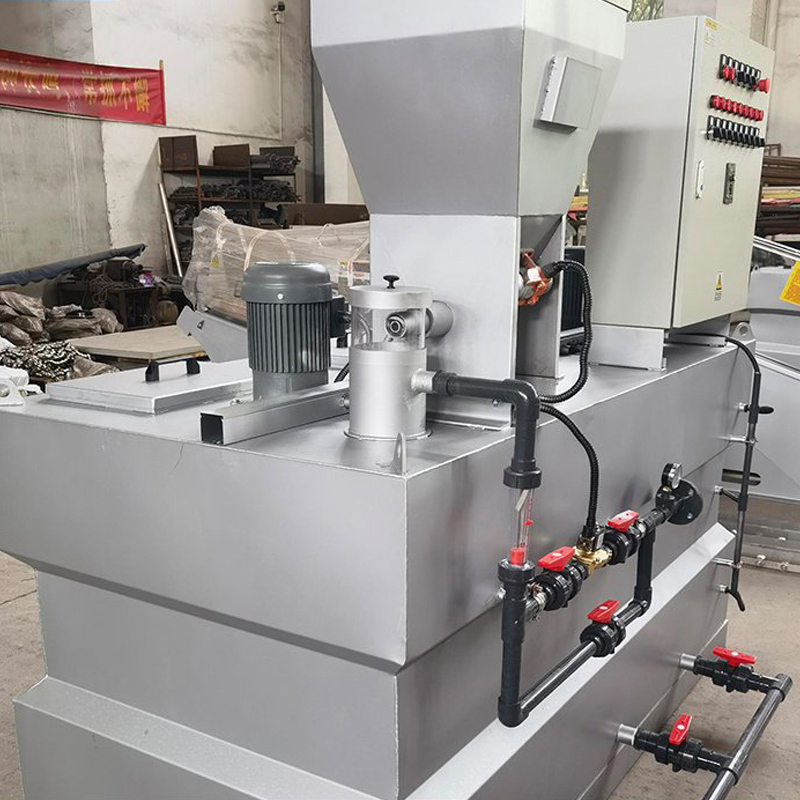

The three compartment integrated PAM dosing device is composed of water supply system, dry powder dosing system, dissolution curing system, control system and liquid dosing system.
The three compartment automatic dosing device is an intelligent, fully automatic and continuous flocculant dissolving and dosing device. The concentration of the prepared solution is generally 0.1% - 0.5%.

Working principle

The dosing system is automatically controlled by PLC, and the control box is connected to the liquid level gauge installed on the solution storage tank. Once the liquid level reaches the "low level", the solenoid water inlet valve is triggered to open, and the dry speculation is started at the same time. The size and amount of dry dosage can be accurately set to obtain accurate concentration. Once the "high bit" is reached, the cycle stops.

The whole preparation process of the dosing equipment is controlled by PLC, which can realize the functions of automatic intermittent, continuous operation and stop cross mixing, so as to make the solution blend evenly. When the dry powder level in the hopper reaches the low level, the electric control box can send out audible and visual alarm signals and stop the whole machine.

Application

The fully automatic dosing device is safe, convenient, reliable and widely applicable, especially to the paper industry, industrial wastewater treatment and municipal wastewater treatment plants, water plants and various industries that need to use flocculant solution.

Parameters
