PAC/PAM Automatic Dosing System Integrated For Dissolving Dosing And Stirring

Ask Lasest Price
Brand Name :	longdai
Model Number :	JY-2500
Certification :	ISO9001 CE
Price :	Negotiatable
Payment Terms :	L/C, T/T
Supply Ability :	1500 sets per Years
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

PAC/PAM Automatic Dosing System Integrated For Dissolving Dosing And Stirring

PAC/PAM automatic dosing device Integrated dosing system for dissolving dosing and stirring

The dosing device is a complete set of equipment integrating dosing, stirring, liquid conveying and automatic control.
The dosing device has the characteristics of compact structure, simple safety, simple operation, etc.
The dosing device is mainly composed of solution tank, mixer, metering pump, electric control cabinet, pipeline, valve, etc. (it can be configured according to the actual requirements of users).

Working Principle

The dosing device shall be prepared in the mixing tank according to the required concentration of the agent, and then put into the solution tank after being evenly stirred by the agitator. The metering pump (dosing pump) shall be used to deliver the prepared solution to the dosing point or the designated system.

The dosing amount and pressure of the phosphate dosing device can be selected according to the needs of the industrial process. The flow is from 1L/h to 8000L/h, and the pressure is from 0.1MPa to 25MPa. The metering accuracy of the metering pump can be as high as ± 1%, and multiple media can be transported simultaneously and adjusted separately.

Product Classification

The dosing device is also called dosing system and dosing equipment.Dosing devices can be divided into three categories according to the use occasions.
1. Oilfield dosing device. It is mainly used to inject flocculants, scale inhibitors, corrosion inhibitors, demulsifiers and other pharmaceutical solutions into the wellhead and other systems on the platform during oil exploitation.

2. Boiler dosing device. It can be used to add ammonia and hydrazine to boiler feed water, add ammonia and hydrazine to condensate, add ammonia and hydrazine to boiler shutdown protection, and add phosphate to steam boilers, mainly for power plants and power stations.

3. Water treatment dosing device. In the process of water treatment, chemicals are added to tap water, waste water and sewage. It is mainly used for water supply and drainage treatment, environmental protection and other processes. Such as waterworks, hotels, restaurants, swimming pools, sewage treatment plants, etc.

Parameter

Type		QJY-500	QJY-1000	QJY-1500	QJY-2000	QJY-3000
production abilityQ(L/h)		500	1000	1500	2000	3000
Size		900x1500x1650	1000 x 1625 x1750	1000 x 2440x1800	1220 x 2440 x180C	1220x3200x2000
Size		900x1500x1650	1000 x 1625 x1750	1000 x 2440x1800	1220 x 2440 x180C	1220x3200x2000
Powder Dosing PowerNi(KW)		0.18	0.18	0.18	0.18	0.18
blender	Blade diameterG(mm)	250	250	250	250	250
	Vertical spindle speed(i/min)	96	96	96	96	96
	PowerN2(KW)	0.55 x 2	0.55x2	0.55 x 2	0.55x2	0.55x2
Dosing screw pump	Flow Q2(mV h)	1	1	1.5~2.0	1.5-2.0	3.0~ 5.0
	Lifth(m)	20	20	20	20	20
	Power N3(KW)	1.1	1.1	1.5	1.5	2.2
Water Inlet Dia(mm)		20	20	25	25	32
Water outlet Dia(mm)		20	20	25	25	32
Installation	B	900	1000	1000	1220	1220
	L	1500	1625	2440	2440	3200
	H	1650	1750	1800	1800	2000
	Hi	800	1050	1050	1050	1350

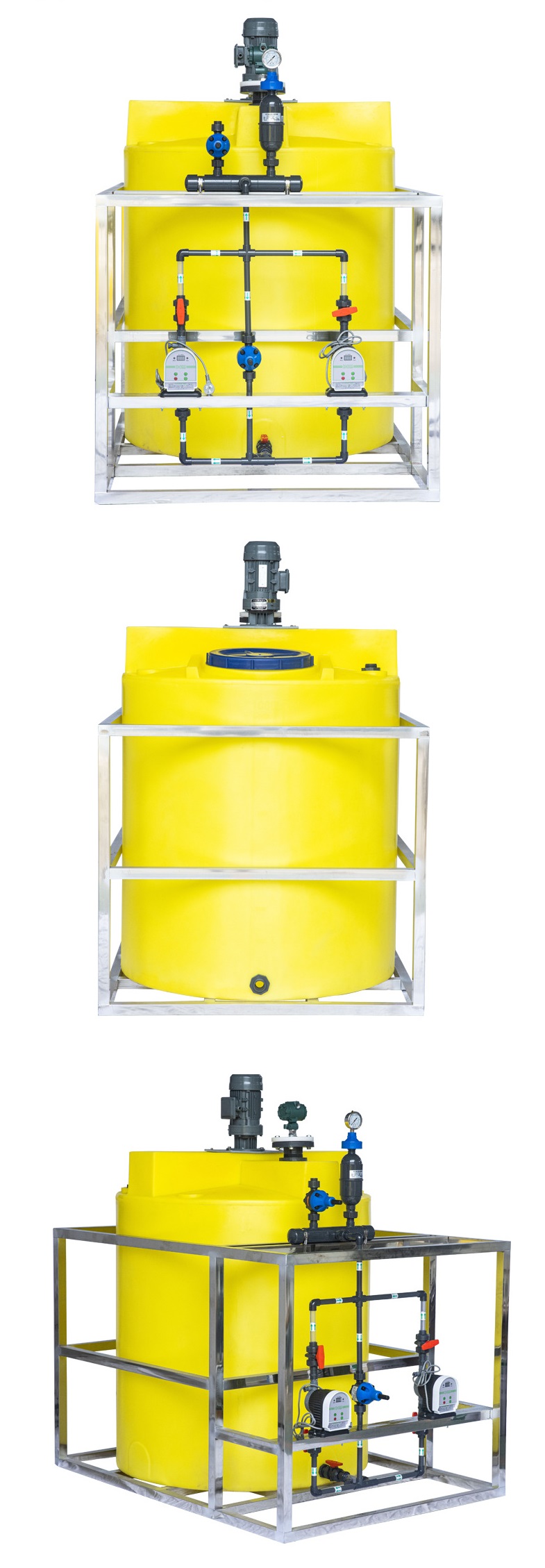

Real Picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."

The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.

The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.

The company has passed ISO9001-2008 international standard quality
system certification.

We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.

FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept? A: T/T, L/C, PAYPAL, Cash,
D/P, D/A, WESTERN UNIION, MONEYGRAM
