PAM Automatic Dosing System Dry Powder Dosing Machine 3500L/H

Ask Lasest Price
Brand Name :	longdai
Model Number :	JY-3500
Certification :	ISO9001
Price :	Negotiatable
Payment Terms :	L/C, T/T
Supply Ability :	1500 sets per Years
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

PAM Automatic Dosing System Dry Powder Dosing Machine 3500L/H

PAM automatic dosing system manufacturer integrated stainless steel dosing equipment dry powder dosing device

The dosing device is mainly used for treatment of boiler feed water, circulating water, hydrazine, phosphate, etc. of the power plant, and can also be used in petroleum, chemical, environmental protection, water supply system and other industries. The unit combined dosing device is mainly composed of a solution tank, a metering pump, a filter, a safety valve, a check valve, a pressure gauge, a buffer tank, etc. It is installed on a base in an integrated way. Users only need to install the dosing device at a designated location, and connect the water inlet and the drug outlet to the power supply to start the operation.

Working Principle

The user shall put a certain amount of reagent into the mixing solution tank for mixing and dissolution as required. After dissolution, it shall be delivered to the dosing point through the metering pump. The dosage can be adjusted freely to meet the requirements of different dosage sites.

Parameters

Type		QJY-500	QJY-1000	QJY-1500	QJY-2000	QJY-3000
production abilityQ(L/h)		500	1000	1500	2000	3000
Size		900x1500x1650	1000 x 1625 x1750	1000 x 2440x1800	1220 x 2440 x180C	1220x3200x2000
Size		900x1500x1650	1000 x 1625 x1750	1000 x 2440x1800	1220 x 2440 x180C	1220x3200x2000
Powder Dosing PowerNi(KW)		0.18	0.18	0.18	0.18	0.18
blender	Blade diameterG(mm)	250	250	250	250	250
	Vertical spindle speed(i/min)	96	96	96	96	96
	PowerN2(KW)	0.55 x 2	0.55x2	0.55 x 2	0.55x2	0.55x2
Dosing screw pump	Flow Q2(mV h)	1	1	1.5~2.0	1.5-2.0	3.0~ 5.0
	Lifth(m)	20	20	20	20	20
	Power N3(KW)	1.1	1.1	1.5	1.5	2.2
Water Inlet Dia(mm)		20	20	25	25	32
Water outlet Dia(mm)		20	20	25	25	32
Installation	B	900	1000	1000	1220	1220
	L	1500	1625	2440	2440	3200
	H	1650	1750	1800	1800	2000
	Hi	800	1050	1050	1050	1350

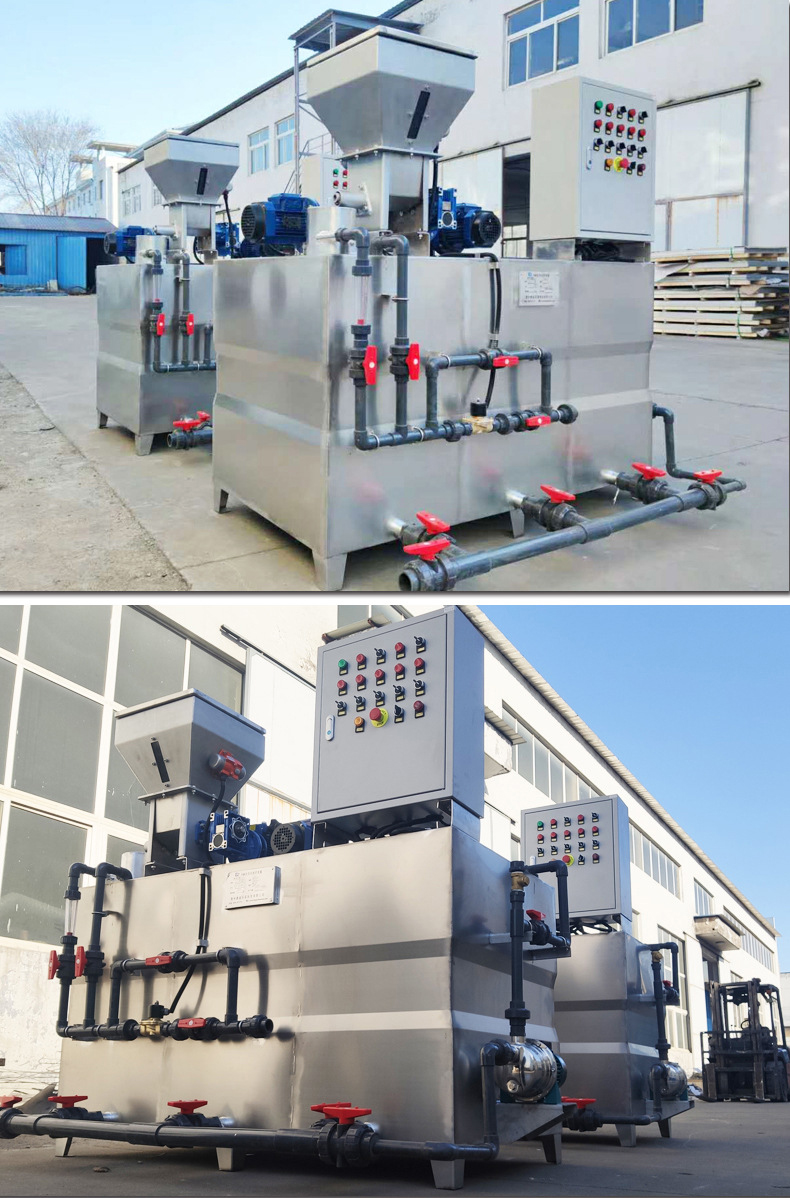

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment
manufacturer with 11 years of experience. It has provided a large number of sophisticated
environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment,
Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water
separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures
the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for
mutual benefit and win-win results.

FAQ

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can
Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering
Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export
Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
