Sedimentation Tank Peripheral Drive Sludge Scraper equipment ISO9001 certified

Ask Lasest Price
Brand Name :	longdai
Model Number :	ZBG-12
Certification :	ISO9001 CE
Price :	Negotiatable
Payment Terms :	L/C, T/T
Supply Ability :	500 sets per Years
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Sedimentation Tank Peripheral Drive Sludge Scraper equipment ISO9001 certified

Stainless steel center drive mud scraper sedimentation tank Peripheral drive sludge scraper

The load of the central drive mud scraper acts on the center of the working bridge. The central drive mechanism drives the scraping and collecting device to rotate. The directional scraper scrapes the sludge at the bottom of the sedimentation tank into the central mud collecting tank and discharges it from the sludge tank by hydrostatic pressure. This machine is used for the amplitude flow sedimentation tank with small diameter.

Working Principle

The raw water flows radially to the overflow tank around the pool after being distributed by the central water distribution cylinder. With the decrease of the flow rate, the suspended solids in the water body are separated and settled at the bottom of the pool. The sludge is scraped to the central sludge collection tank by the scraper through the deceleration drive and the transmission of the suspended components, and discharged out of the pool by the hydrostatic force or pump.

Product Features

1. Simple structure, convenient maintenance and management;
2. Stable operation, safe and reliable operation;
3. The sludge collection effect is good, and the water content of discharged sludge is low.

Product Parameters

Parameter / model Pool widthΦ(m)		ZBGX-16	ZBGX-20	ZBGX-25	ZBGX-30	ZBGX-35	ZBGX-40	ZBGX-45	ZBGX-50	ZBGX-55
Parameter / model Pool widthΦ(m)		16	20	25	30	35	40	45	50	55
Deep pool depth H(m)		3.5～4.5(According to the user's requirements)
Pool side water depth H2(m)		3.0～4.0(According to the user's requirements)
Around the line speed V(m／min)		1.8~2.2
Walking wheel dimensions (mm)		400x120					420x150
Power of motor N(KW)		0.37			0.55				0.75
Installation size (mm)	Φ1	1100	1100	1200	1200	1500	1500	1800	1800	1800
	2	2500	2500	2500	3500	4000	4500	5000	5500	6000
	Φ3	2600	3000	3800	4500	4500	4500	5000	6000	6000
	Φ4	2100	2300	3500	4000	4000	4000	4500	4500	4500
	H2	500	500	009	760	760	760	760	760	760
	B	According to the user's requirements
	H3	According to the user's requirements
	L	According to the user's requirements
Around the wheel pressure P1(KN)		9.0	11.5	15	19	22	25	28	30	32
Vertical load of the central platform P2(KN)		17	23	30	37	82	100	112	122	175
Center load of center load P3(KN)		9.5	13	17	22	28	28	30	32	40

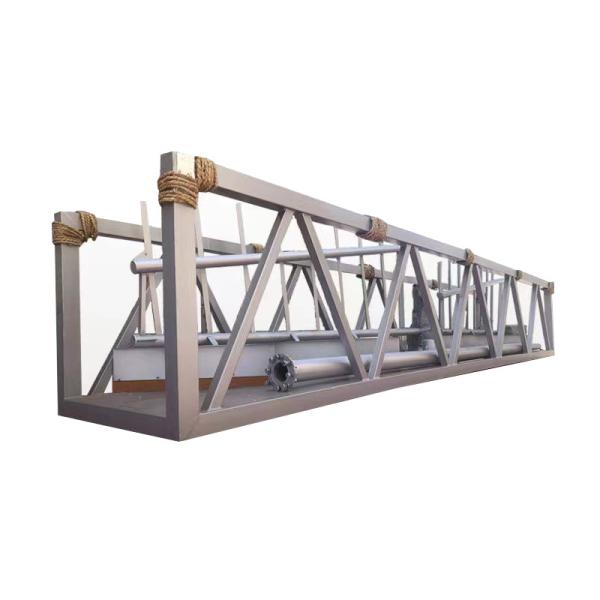

Real Picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment, Waste Gas Collection and Treatment,
Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water separator, mud scraper, air
flotation device, dosing device, sludge thickener, rotary drum
micro filter, conveyor, etc."

The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.

The processing team controls the manufacturing details of each
equipment, and manufactures the most sophisticated and reliable
equipment for customers.

The company has passed ISO9001-2008 international standard quality
system certification.

We look forward to contacting you, please give us a chance. I hope
we can trust each other for mutual benefit and win-win results.

FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as
long as it is not a man-made damage, we send the damaged parts free
of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM.
