Full-automatic dosing device dissolving and mixing integrated dosing system sewage treatment equipment

The dosing device accurately configures various solid and liquid chemical solutions through different process designs, and then accurately dosing with metering pump to meet various design requirements, such as scale removal, oxygen removal, coagulation, acid addition, alkali addition, etc.
The dosing process can be operated manually, and various electrical appliances and instruments such as PC, magnetic flap level gauge, PH meter, travel controller, frequency converter can also be used to make the dosing device an electromechanical product and realize automatic control.

Product Features

1. Taking system design as the main body, it overcomes the defects of poor system of traditional products with single equipment or components as the main body of design;
2. With a new design concept, the process is more optimized;
3. Modular design and integrated combination of product structure can facilitate the expansion of capabilities and functions;
4. According to different water quality and different requirements of users, Zui's best solution can be flexibly configured
5. Metering pump, equipment and components of different materials and grades can be selected by users
6. Various control modes such as manual and automatic can be selected to achieve different control requirements.

Type		QJY-500	QJY-1000	QJY-1500	QJY-2000	QJY-3000	QJY-4000
production abilityQ(L/h)		500	1000	1500	2000	3000	4000
Size		900x1500x1650	1000 x 1625 x1750	1000 x 2440x1800	1220 x 2440 x180C	1220x3200x2000	1450x3200x2000
Powder Dosing PowerNi(KW)		0.18	0.18	0.18	0.18	0.18	0.18
blender	Blade diameterG(mm)	250	250	250	250	250	250
	Vertical spindle speed(i/min)	96	96	96	96	96	96
	PowerN2(KW)	0.55 x 2	0.55x2	0.55 x 2	0.55x2	0.55x2	0.55 x 2
Dosing screw pump	Flow Q2(mV h)	1	1	1.5~2.0	1.5-2.0	3.0~ 5.0	3.0-5.0
	Lifth(m)	20	20	20	20	20	20
	Power N3(KW)	1.1	1.1	1.5	1.5	2.2	2.2
Water Inlet Dia(mm)		20	20	25	25	32	32
Water outlet Dia(mm)		20	20	25	25	32	32
Installation	B	900	1000	1000	1220	1220	1450
	L	1500	1625	2440	2440	3200	3200
	H	1650	1750	1800	1800	2000	2000
	Hi	800	1050	1050	1050	1350	1350

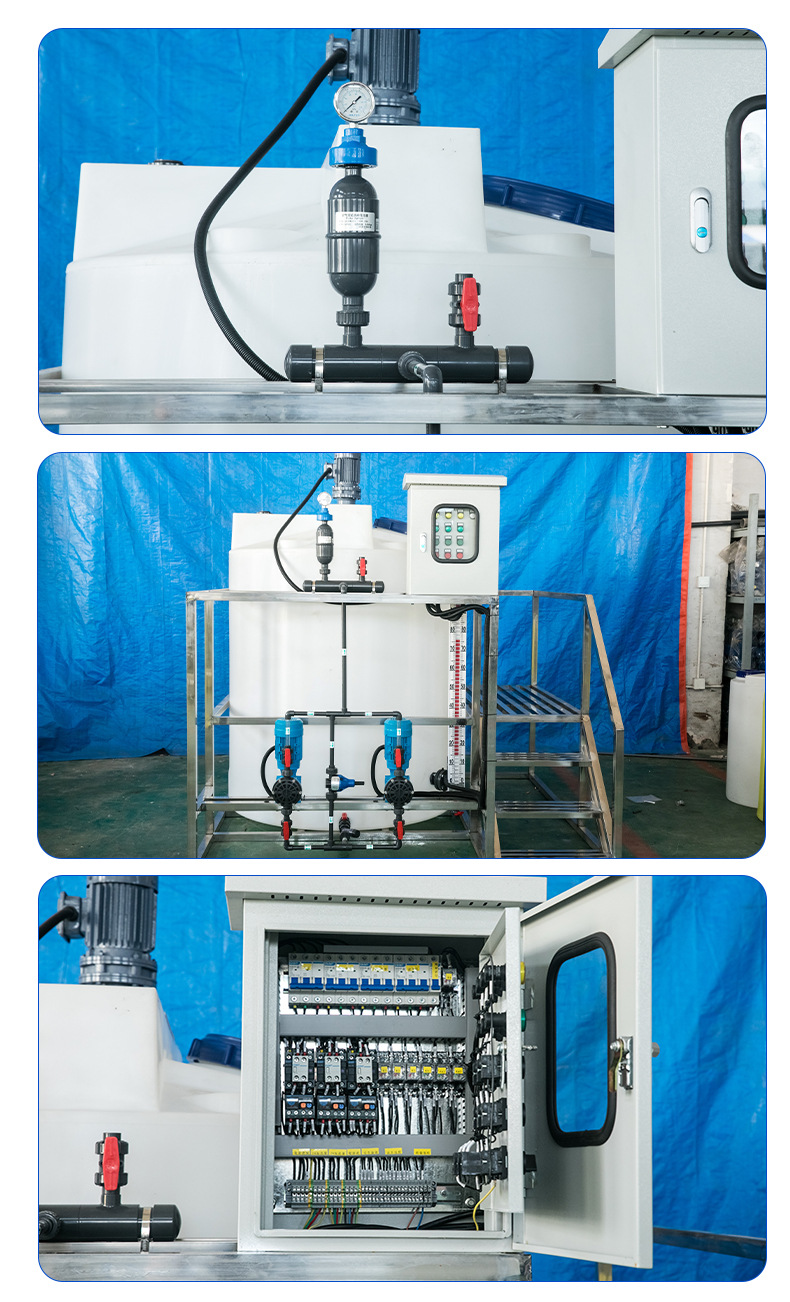

Real Picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment
manufacturer with 11 years of experience. It has provided a large number of sophisticated
environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment,
Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water
separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures
the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for
mutual benefit and win-win results.

FAQ

Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service.

       Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with more than 15 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

       Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

       Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor,Manual and Mechnical Bar Screen ,Bridge Scrapers ,Ordor Control System,Belt/Screw Conveyor,Disc Filter etc."
