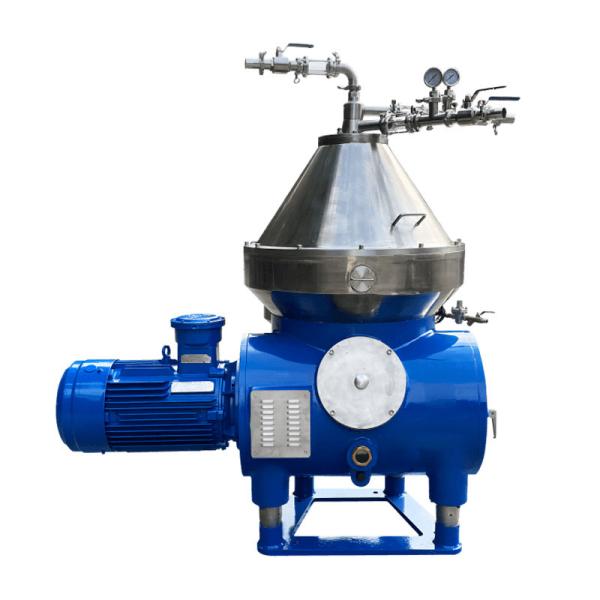

    Liquid liquid separation by disc bowl centrifuge disc bowl centrifugation centrifuge

    Ask Lasest Price
    Brand Name : Longdai
    Price : 10000-20000USD
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 100Set per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Liquid liquid separation by disc bowl centrifuge disc bowl centrifugation centrifuge

    Liquid liquid separation by disc bowl centrifuge disc bowl centrifugation centrifuge


    Liquid-liquid separation using disc bowl centrifuges is a process commonly employed in various industries, including food processing, pharmaceuticals, and wastewater treatment. Here’s a brief overview of how this process works:

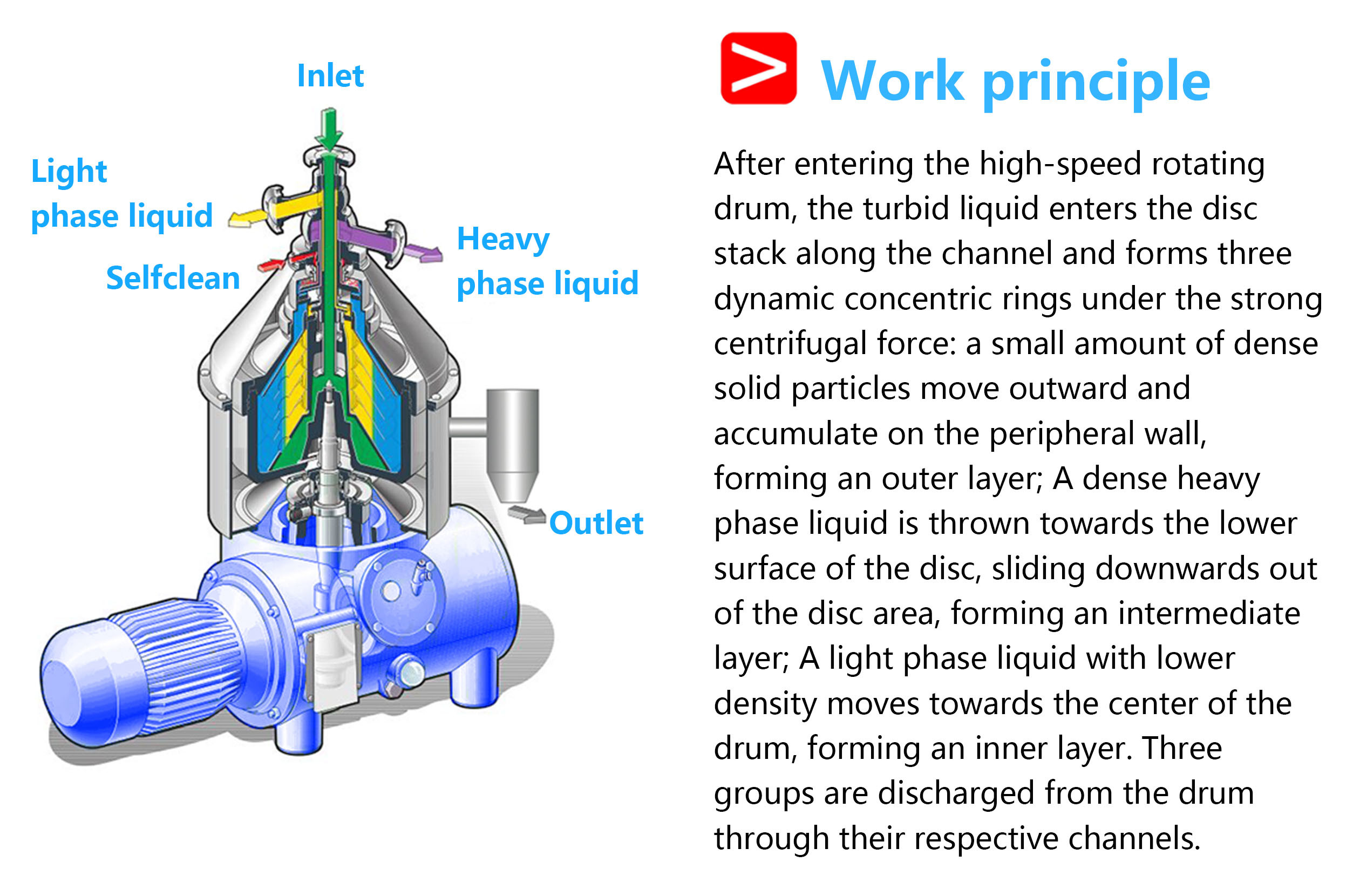

    Overview of Disc Bowl Centrifugation

    1. Principle:

      • Disc bowl centrifuges operate on the principle of centrifugal force. When the centrifuge spins, denser liquids are forced outward, while lighter liquids remain closer to the center.
    2. Design:

      • The disc bowl centrifuge consists of a rotating bowl with stacked discs. These discs create multiple separation zones, increasing the surface area for interaction between the liquid phases.
    3. Operation:

      • The mixture of liquids is fed into the centrifuge, and as it spins, the heavier liquid (often the desired product) moves outward, while the lighter liquid (usually a waste or by-product) remains closer to the center.
      • The separation process is enhanced by the use of the discs, which reduce the settling time for the liquids.
    4. Applications:

      • Food Processing: Separating oils from water in the production of edible oils.
      • Pharmaceuticals: Recovery of active ingredients from various solvents.
      • Wastewater Treatment: Removal of oils from water in industrial effluents.
    5. Advantages:

      • High efficiency in separation.
      • Continuous operation, allowing for higher throughput.
      • Compact design, suitable for limited space.
    6. Challenges:

      • Proper maintenance is required to avoid wear.
      • It's essential to optimize feed conditions to ensure effective separation.
    Modle
    Treatment Capacity
    (L/h)
    Inlet Pressure(Mpa)
    Outlet Pressure(Mpa)
    Motor Power
    (kw)
    Weight
    (kg)
    Outline Dimension(mm)
    DH360
    2000-5000
    0.05
    0.1-0.35
    7.5
    1200


    1530*1150*1500


    DH380
    3000-7000
    0.05
    0.1-0.4
    11
    1500
    1555*1070*1530
    DH470
    5000-10000
    0.05
    0.1-0.4
    15
    1600
    1800*1200*1750
    DY603
    500-1000
    0.2
    0.1-0.4
    4
    550
    950*700*850
    DY209
    1000-3000
    0.1
    0.1-0.4
    11
    1300
    1650*1200*1550
    DY211
    2000-5000
    0.05
    0.1-0.4
    15
    1600
    1800*1200*1750
    DY614
    3000-1000
    0.1
    0.1-0.4
    22
    2300
    1950*1550*1960
